| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
DC20V – 32VDC |
| Protection Class |
N/A |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

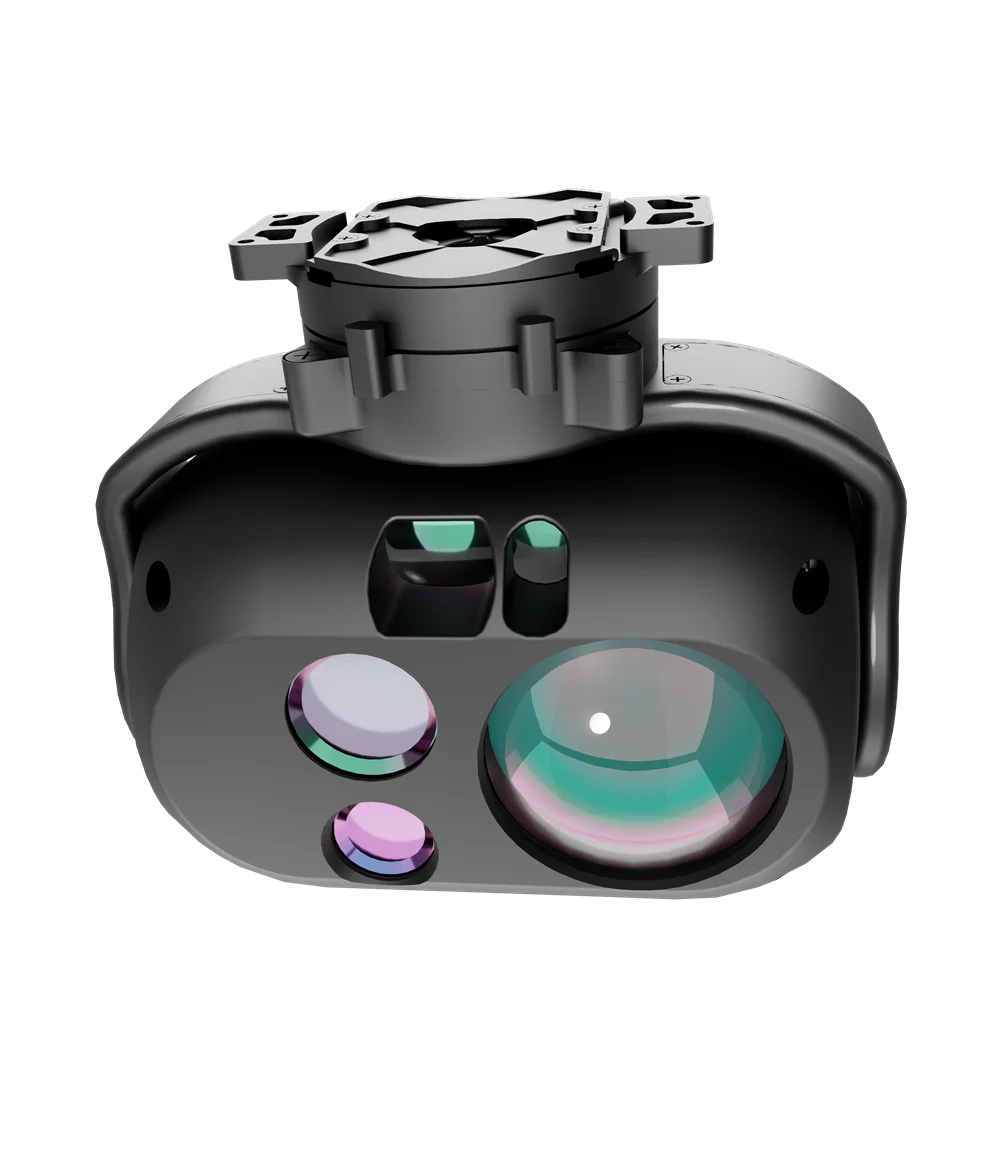

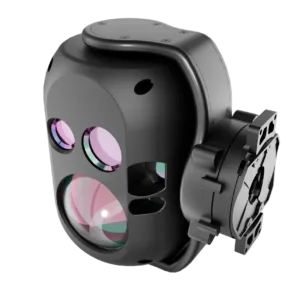

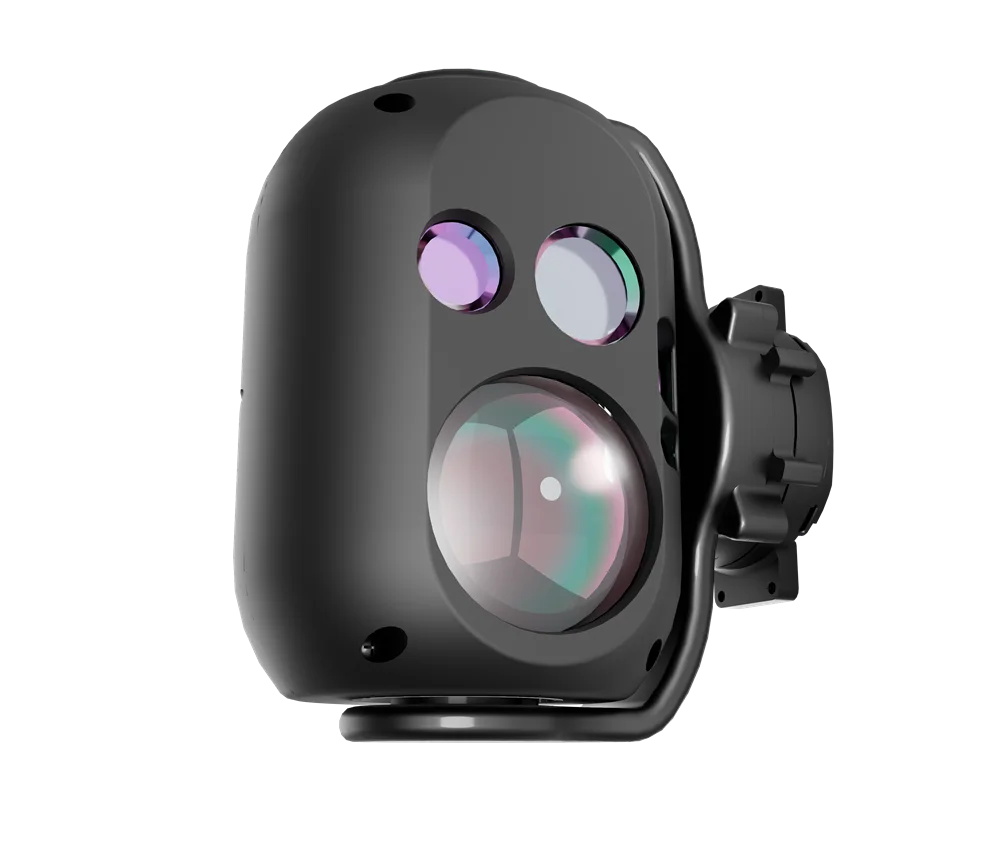

Pod Shendu Camera |
| Standard |
OED,ODM |
| Model Number |
XD21Q |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Model |
XD21Q |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
1280×1024（640×512 optional) |
|
|
| Pixel Size |
12μm |
| Lens Focal Length |
35mm |
| Field of View |
24.8°×19.9° |
|
|
| Pallete |
10 |
| Digital zoom |
1～4X |
| Noise Equivalent Temperature Difference |
NETD≤50mK |
| Minimum Resolvable Temperature Difference |
MRTD≤500mK |
|
|
| Wide-angle Visible Light Camera |
| Resolution |
1920×1080 |
| Focal Length |
4mm |
| Field of View Angle |
71.5°×44.1° |
|
|
| Long-focus Visible Light Camera |
| Resolution |
1920×1080 |
| Focal Length |
16mm |
| Field of View Angle |
20.4°×11.2° |
|
|
| Laser Ranging Machine |
| Maximum Ranging Distance |
≥1.2km (under the condition of visibility ≥5Km, huge target(construction) |
| Minimum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤1m |
| Ranging Frequency |
1 ~5Hz |
|
|
| Servo Platform |
| Pan Angle |
-120°×+120° |
| Tilt Angle |
-100° ~ +25° (positive upward) |
| Stabilization Accuracy |
≤1mrad |
| Maximum Angular Velocity |
60°/s |
| Maximum Tracking Angular Velocity |
60°/s² |
|
|
| Imaging Processing Module |
| Automatically identification |
Automatically identify selected targets≥32 |
| Target tracking |
Target dimension≥16✖16 |
| Tracking frame rates |
≤50Hz |
| Image output |
RTSP/UDP/RTMP optional, 200kbps～6Mbps se |
|
|
| System parameters |
| Voltage |
DC20V – 32VDC |
| Consumption |
Stable Power Consumption: ≤15W (power-up peak current ≥5A) |
| Weight |
≤600g |
| Dimensions |
≤105mm×91.4mm×148.4mm |
|
|
| Interface |
| Control Interface |
RS422/100 Mbit |
| Video Interface |
100 Mbit |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
|
|
| Environmental Adaptability |
| Working Temperature |
-40℃～＋55℃ |
| Storage Temperature |
-50℃～＋65℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
