| Product Attribution | |
|---|---|
| Type | Uncooled Focal Plane Detector |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | 12V – 32VDC |
| Protection Class | N/A |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

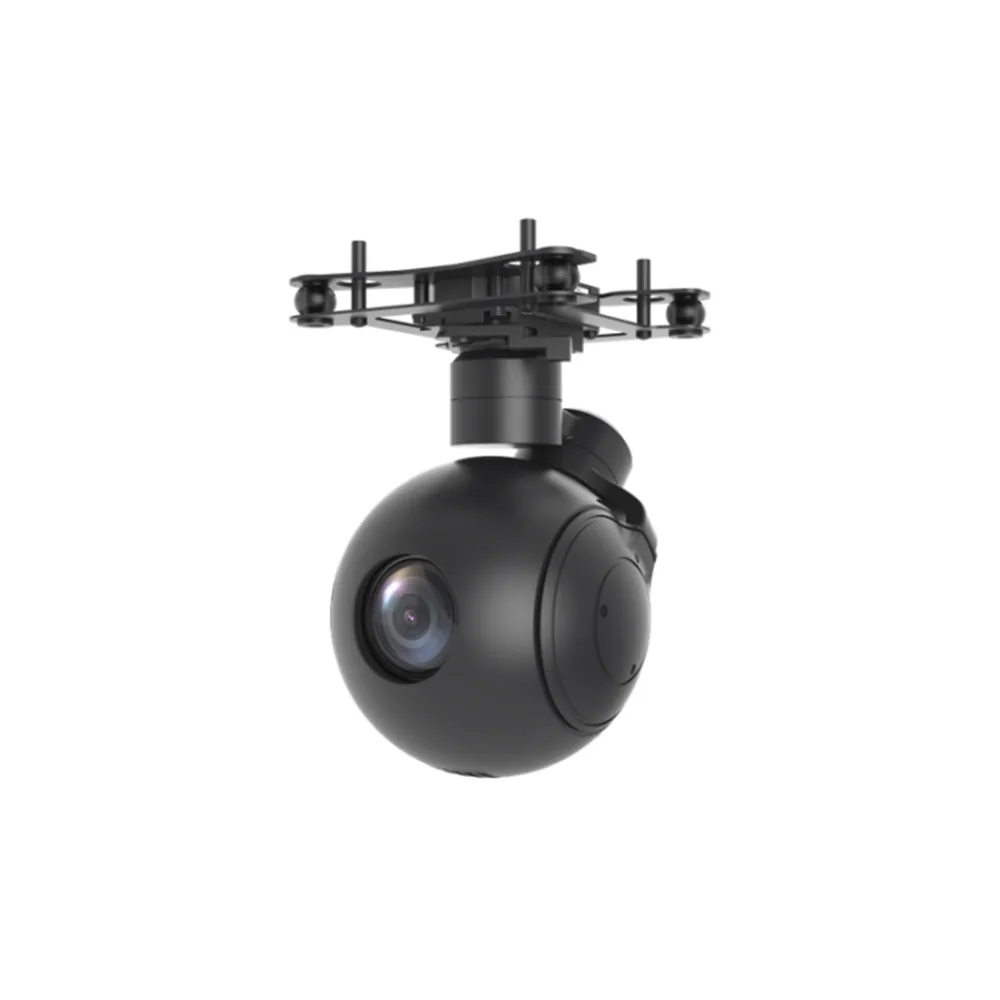

| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number | UT120SB |
| Packaging & Delivery | Single item |
| Visible Light Camera | |
| Resolution | 1920×1080 |
| Optical Zoom | 55 times |
| Focal Length | 4.25mm～234mm |
| Field of View Angle | 62.1°×37.4°～1.5°×0.7° |
| Zoom | Auto focus, manual focus |
| Minimum Illumination | 0.01Lux (black and white) |
| Servo Platform | |
| Azimuth Angle | 360°×n（360°rotating） |
| Pitch Angle | -110°～+45°（upward is positive） |
| Frame Angular Accuracy | -40°～+40° |
| Stable Accuracy | ≤0.3°（1σ） |
| Maximum Turning Speed | ≤0.1mrad（1σ） |
| Maximum Turning Acceleration | position≥50°/s，pitch≥50°/s |
| Azimuth Angle | position≥20°/s²，pitch≥20°/s² |
| Imaging Processing Module | |
| Automatically identification | Automatically identify selected targets≥32 |
| Target tracking | Target dimension≥16✖16 |
| Tracking frame rates | 50HZ |
| Image output | RTSP/UDP/RTMP optional, 200kbps～6Mbps settable |
| System Parameters | |
| Supply Voltage Range | 12V～32VDC |
| Consumption | Stable consumption：≤30W（electrical Maximum flow current≥5A |
| Weight | ≤1000g |
| Image Tracking | ≤120mm×130mm×198mm |
| Interface | |
| Control | RS232/TTL/RS422/Mbps（optional） |
| Video | Mpbs(optional) |
| Storage | ≤128G storage card（Mini SD card） |
| Image | Jpg format |
| Video format | Avi format |
| Mechanical arms type | Inclined arms |
| Quick release | With quick release |
| Environment | |
| Working Temperature | -20℃～＋55℃ |
| Storage | -40℃～＋60℃ |
| Vibration | Velocity 2g；vertical、horizon、three directions lasting 30min respectively |
| Shocking | Maxi velocity 20g，lasting time 11ms |
| Protection Level | Can fly in light rain |
| Interface | |
| Environmental Adaptability | |
