| Type |
Cooled FPA |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
20V – 32VDC |
| Protection Class |
IP54 |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

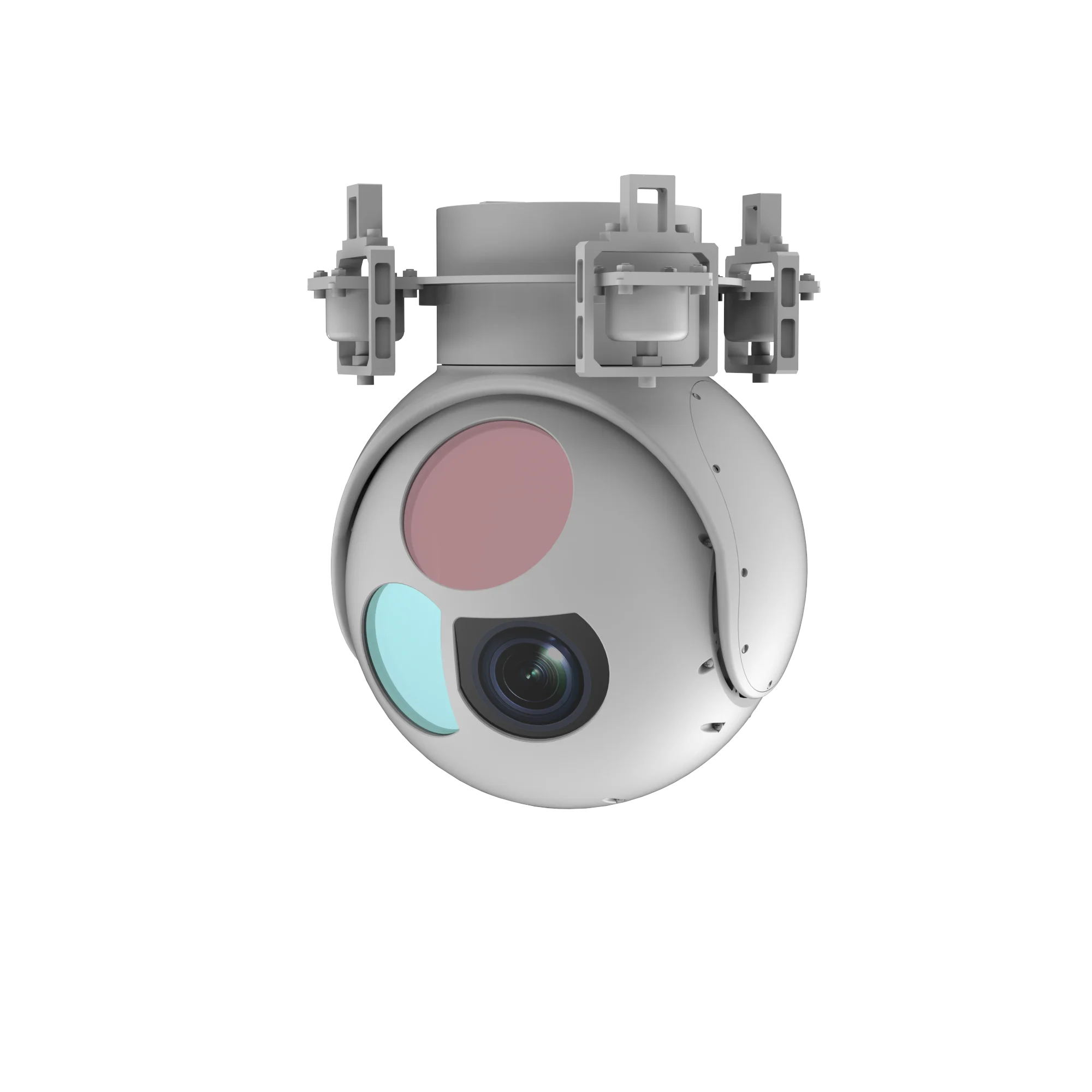

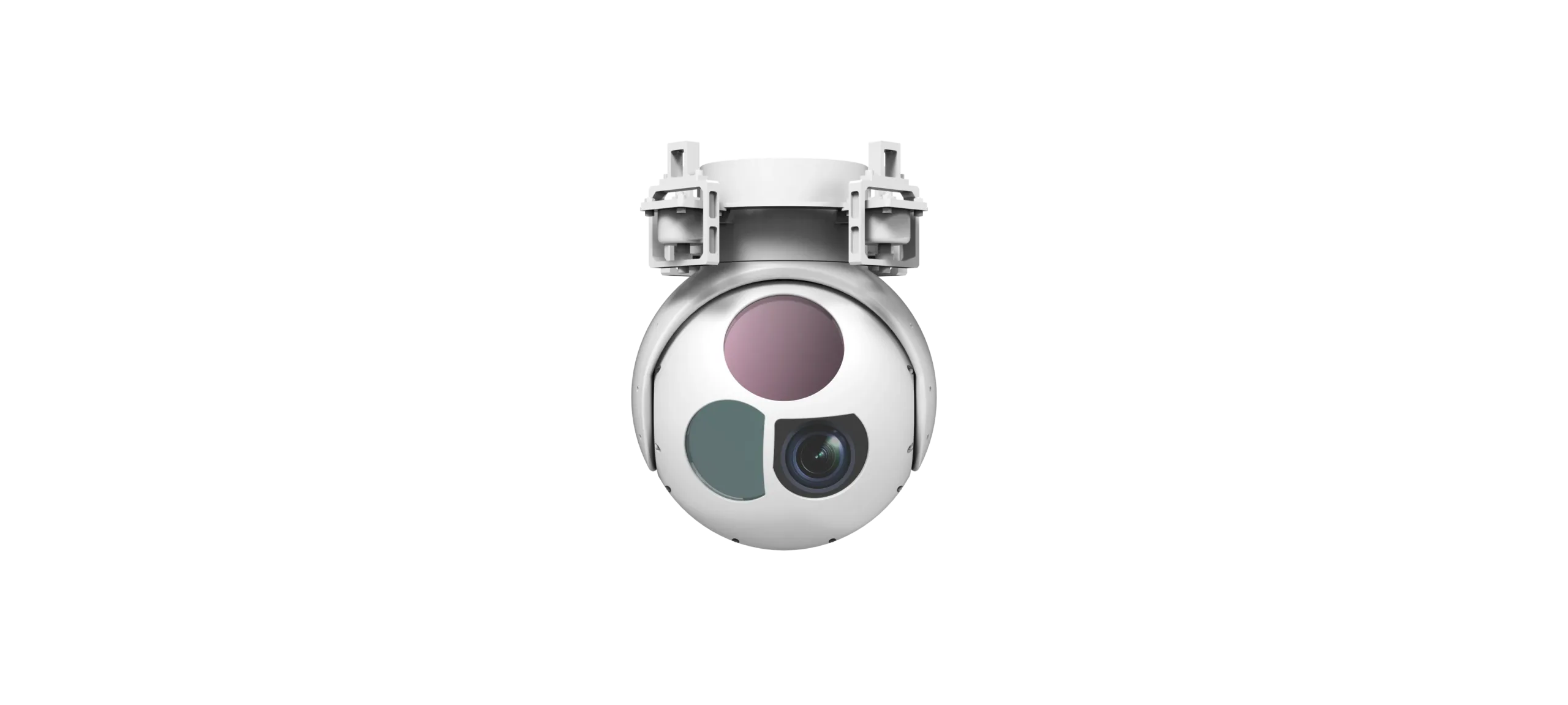

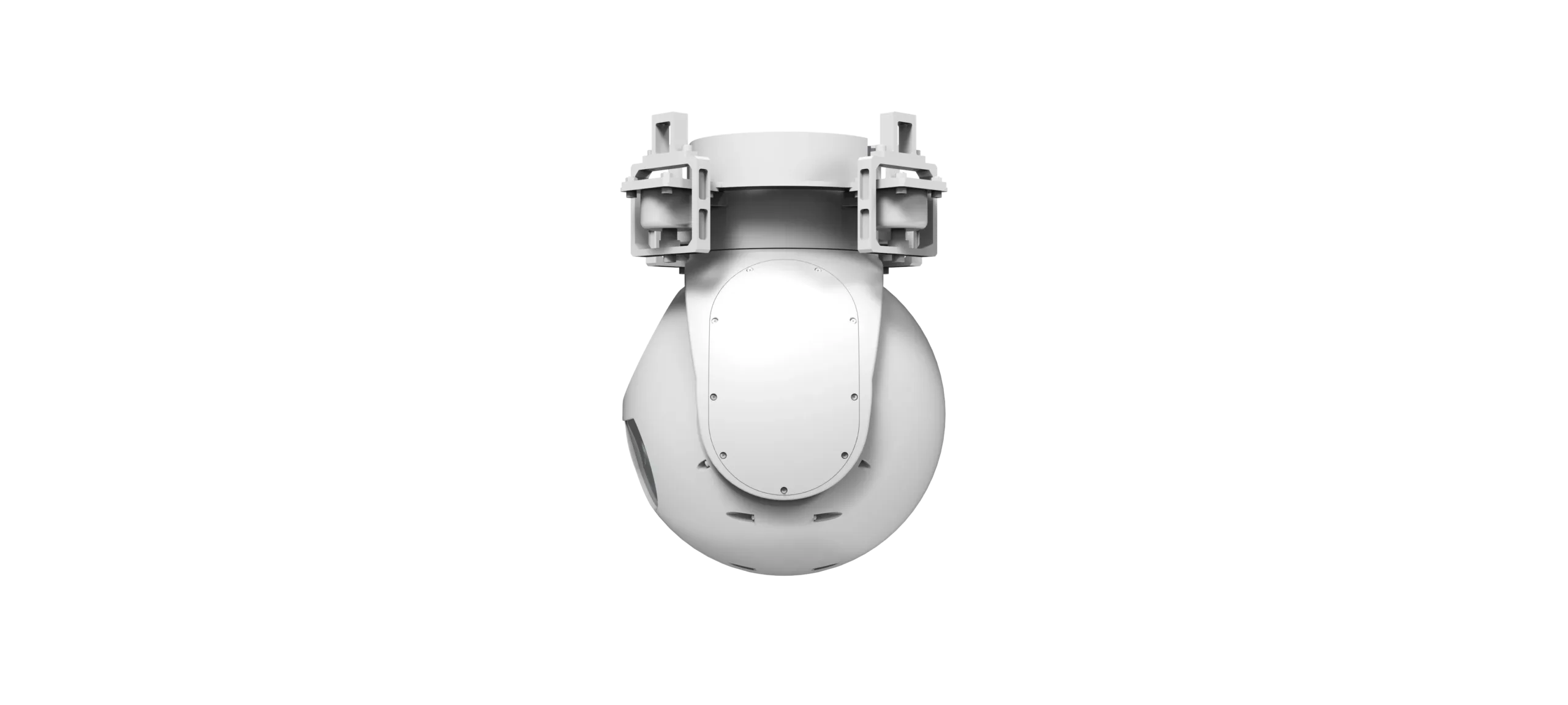

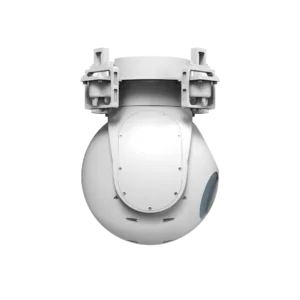

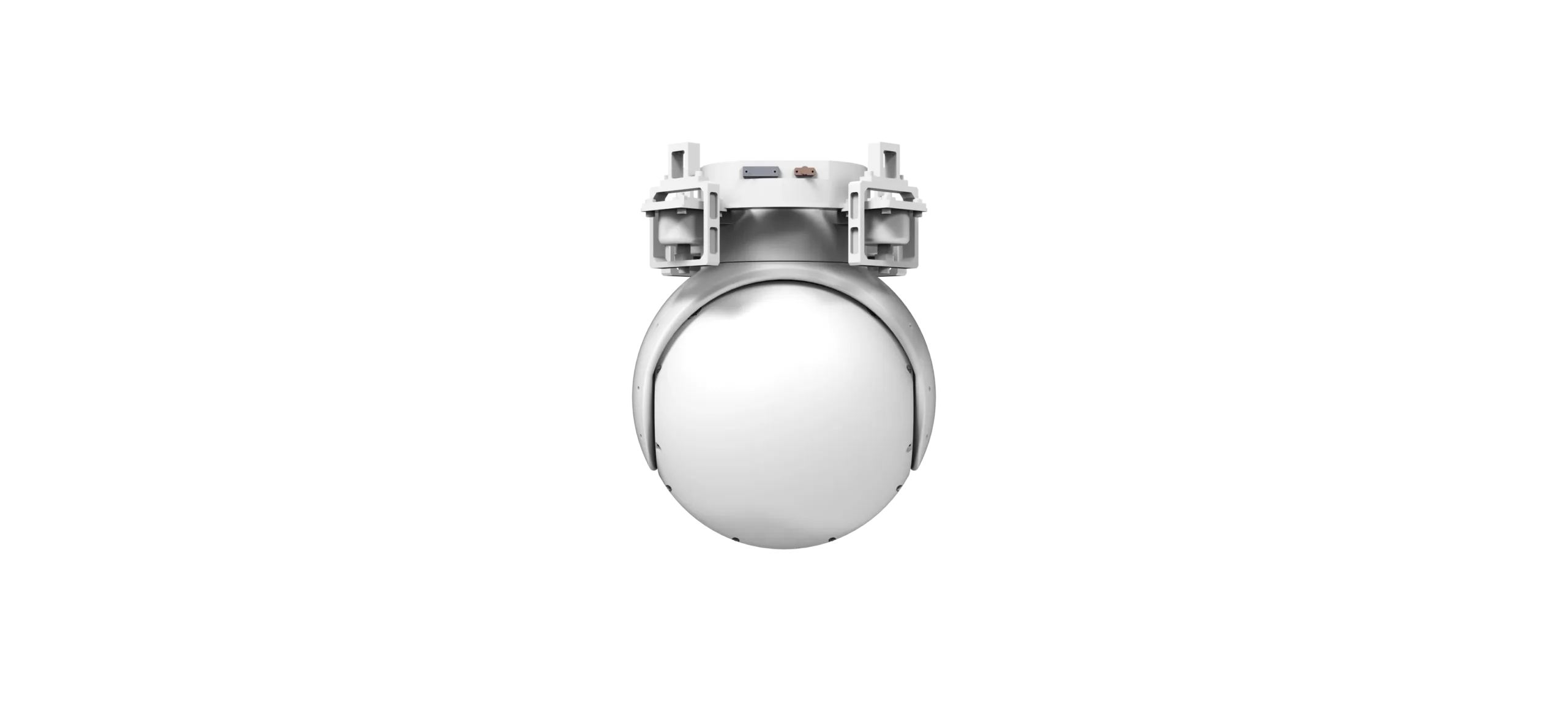

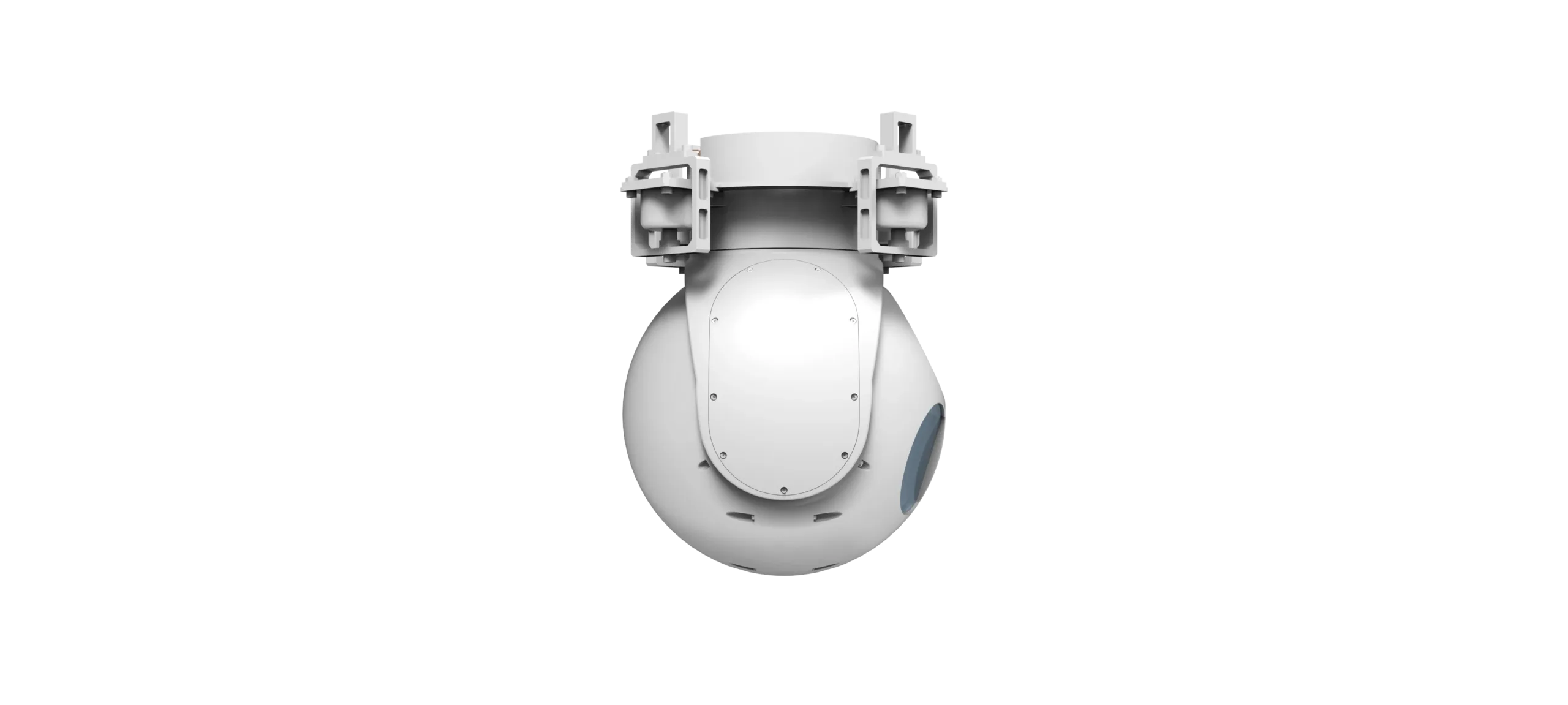

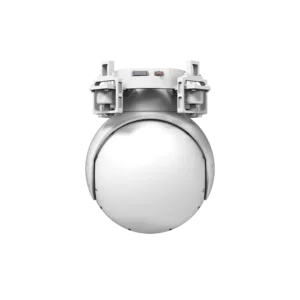

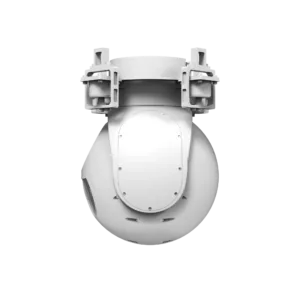

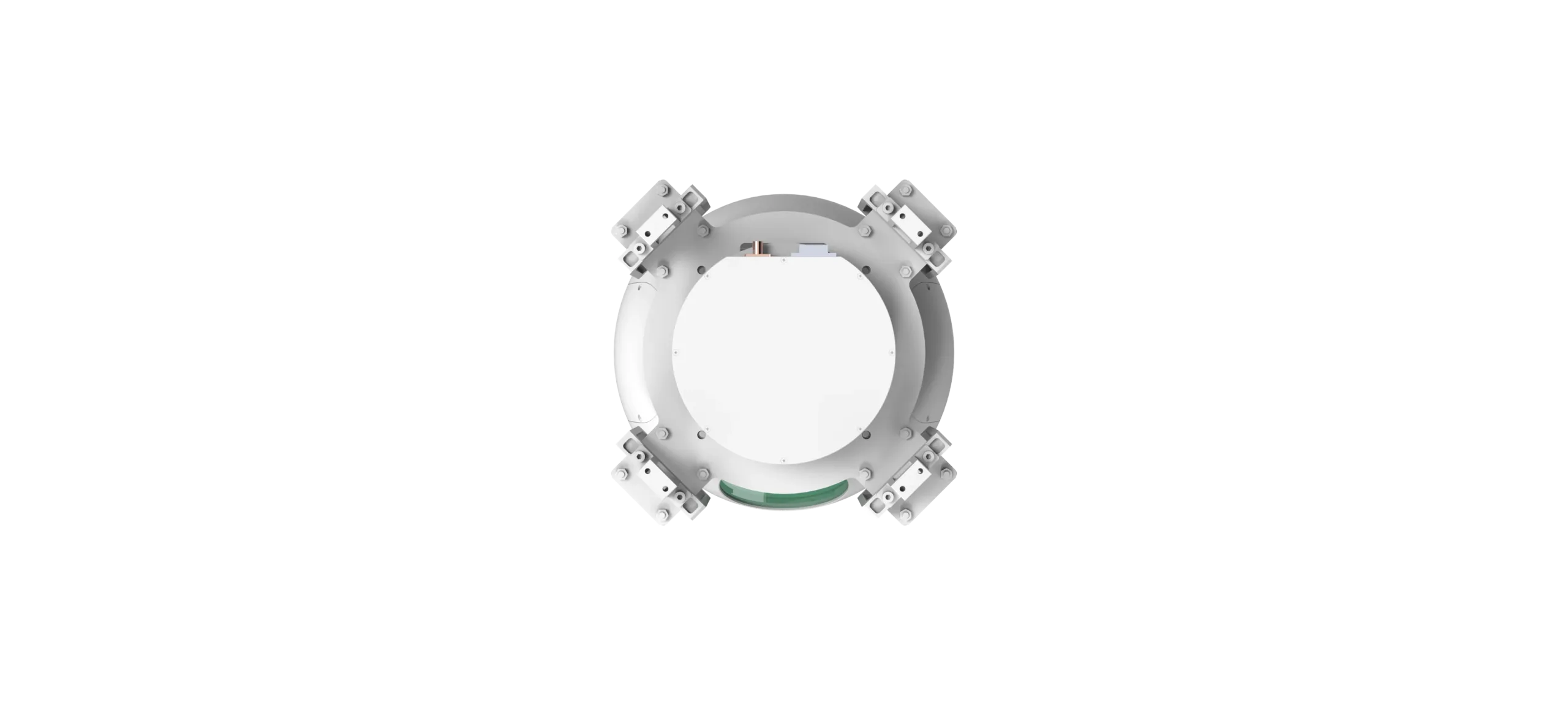

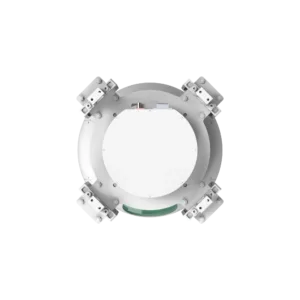

Pod Shendu Camera |
| Application |
Payloading integration |
| Model Number |
UD230TC |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Model |
UD230TC |
| Detector Type |
Uncooled Focal Plane Detector |
| Detector Resolution |
640×512 |
| Pixel Size |
15μm |
| Lens Focal Length |
20mm～275mm |
| Field of View |
27°×21.7°～2°×1.6° |
| Noise Equivalent Temperature Difference |
NETD≤20mK |
| Minimum Resolvable Temperature Difference |
MRTD≤180mK |
|
|
| Visible Light Camera |
| Resolution |
1920×1080 |
| Pixel size |
2.8μm |
| Optical Zoom |
30 times |
| Hybrid Zoom |
60 times |
| Focal Length |
4.3mm～129mm |
| Field of View Angle |
63.7°×35.8°～2.3°×1.3°(±5%) |
| Zoom |
Auto focus, manual focus |
| Minimum Illumination |
0.01Lux(Black and white) |
|
|
| Laser Ranging Machine |
| Maximum Ranging Distance |
4056×3040 (fixed focus 1200W pixels) |
| Minimum Ranging Distance |
1.55μm |
| Ranging Accuracy |
3.35mm |
| Ranging Accuracy |
83°×53° |
|
|
| Laser Ranging Machine |
| Maximum Ranging Distance |
≥4km (under the condition of visibility ≥15Km) |
| Minimum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤2m |
| Ranging Frequency |
1 ~5 Hz |
|
|
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-120° ~ +90° (positive upward) |
| Stabilization Accuracy |
≤0.05mrad（1σ） |
| Maximum Angular Velocity |
Azimuth≥60°/s, Pitch≥60°/s |
| Maximum Tracking Angular Velocity |
Azimuth≥100°/s², Pitch≥100°/s² |
|
|
| Image processing |
| Auto Identification |
Automatic identification of human and vehicle targets Number ≥32 |
| Target tracking |
Target size ≥16×16 |
| Tracking frame rates |
50HZ |
| Image output |
RTSP/UDP/RTMP optional, code rate 100kbps～6Mbps settable |
|
|
| System parameters |
| Voltage |
20V – 32VDC |
| Consumption |
Stable Power Consumption: ≤60W |
| Weight |
≤8.5Kg |
| dimensions |
≤230mm×229mm×317.5mm |
|
|
| Interface |
| Control Interface |
RS422/100 Mbit |
| Video Interface |
100 Mbit |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
|
|
| Environmental Adaptability |
| Working Temperature |
-40℃～＋60℃ |
| Storage Temperature |
-45℃～＋60℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
