| Product Attribution | |
|---|---|

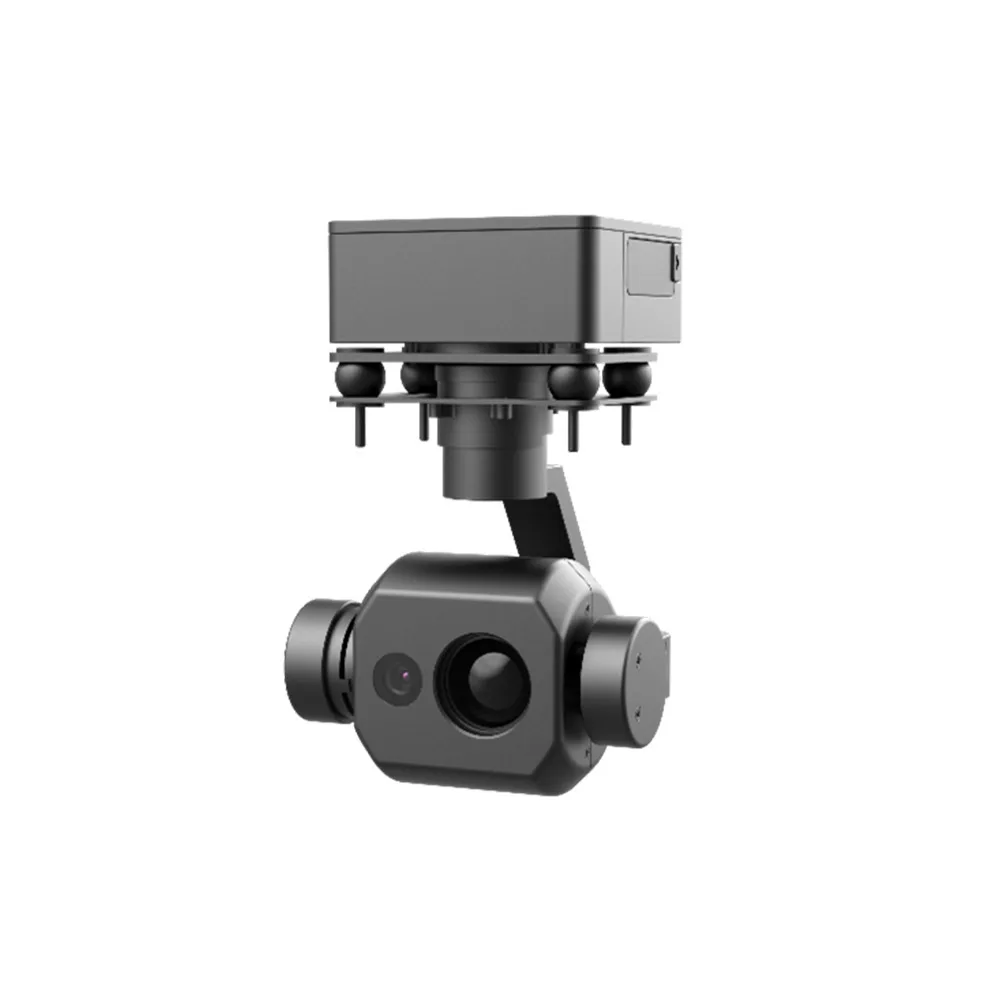

| Type | Three-axis Stabilized Imaging Gimbal Camera |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | DC9V-DC15V |
| Protection Class | IP54 |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | environmental monitoring |
| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number | GT135D |
| Packaging & Delivery | Single item |
| Gimbal Parameters | |
| Stabilized Imaging Accuracy | ≤0.02° (Disturbance 0.5°@1Hz) |
| Frame Form | Three-Axis Mechanical Gyro Stabilized Imagin |
| Form Design Range | Azimuth: -90°～+90°, Roll: -30°～+30°, Pitch: -120°～+90° |
| Controllable Rotation Range | Pitch -90°～+90°；Tilt:-90°～+30° |
| Infrared Camera Parameters | |
| Detector Response Band | 8 – 14μm, Long Wave |
| Pixel Size | 12μm |
| Pixels | 384×288 |
| Optical Focal Length | 18mm |
| Optical F | 1.0 |
| Field of View | 14.6°×11.0°（±5%） |
| Infrared Photography Resolution | 384×288 |
| Infrared Video Resolution | 384×288 |
| Video Frame Rate | 25Hz |
| Visible Light Camera Parameters | |
| Pixels | 32MP |
| Pixel Size | 1.12μm×1.12μm |
| Lens Focal Length | 5.7mm（±5%） |
| Field of View | 54.1°×30.4°（±5%） |
| Video Resolution | 1920×1080 |
| Photography Resolution | 7680×4320、1920×1080 |
| Visible Light Camera Parameters | |
| Pixels | 32MP |
| Pixel Size | 1.12μm×1.12μm |
| Lens Focal Length | 5.7mm（±5%） |
| Field of View | 54.1°×30.4°（±5%） |
| Video Resolution | 1920×1080 |
| Photography Resolution | 7680×4320、1920×1080 |
| Tracker | |
| Functions | 1. Automatically recognize typical targets ; 2. Manually set the size of the target tracking frame and lock the target; 3. Detect target and predict tracking; 4. Positioning target Track the target in visible light or infrared. |
| System parameters | |
| Storage | SD Card Storage |
| Gimbal Dimensions | 50.0mm (Length) × 50.0mm (Width) × 66.0mm (Height) (Gimbal only); |
| Weight | Three-Axis Gimbal: 135g ± 5g; Servo Controller + Tracker (Required): 35g; Control Box (Optional): 20g. |
| Operating Distance | The target recognition distance for Armed individual＞700m（Under the condition that the daytime visibility≥8km）； The target recognition distance for adults＞240m（Under the condition that the nighttime visibility≥8km, the relative humidity ≤60%, and the background temperature difference ≥5K） |
| Operating Temperature | -40°C～+55°C |
| Storage Temperature | -45°C～+60°C |
| Rain Test | Can operate normally in light rain conditions. |
| Power Supply and Power Consumption | |
| Power Supply | DC9V～DC15V@3A |
| Stable Power Consumption | ≤10W |
| Interfaces | |
| Video | Network, HDMI; |
| Control | TTL Serial Port, Network, SBUS; |
| Storage | SD Card Storage; |
| Mechanical Interface | Please contact our customer service staff. |
