| Product Attribution | |
|---|---|
| Type | Uncooled Focal Plane Detector |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | hot stamping, 3D Printing |
| Accuracy | Ultra high level |
| Voltage | 12V – 32VDC |
| Protection Class | N/A |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

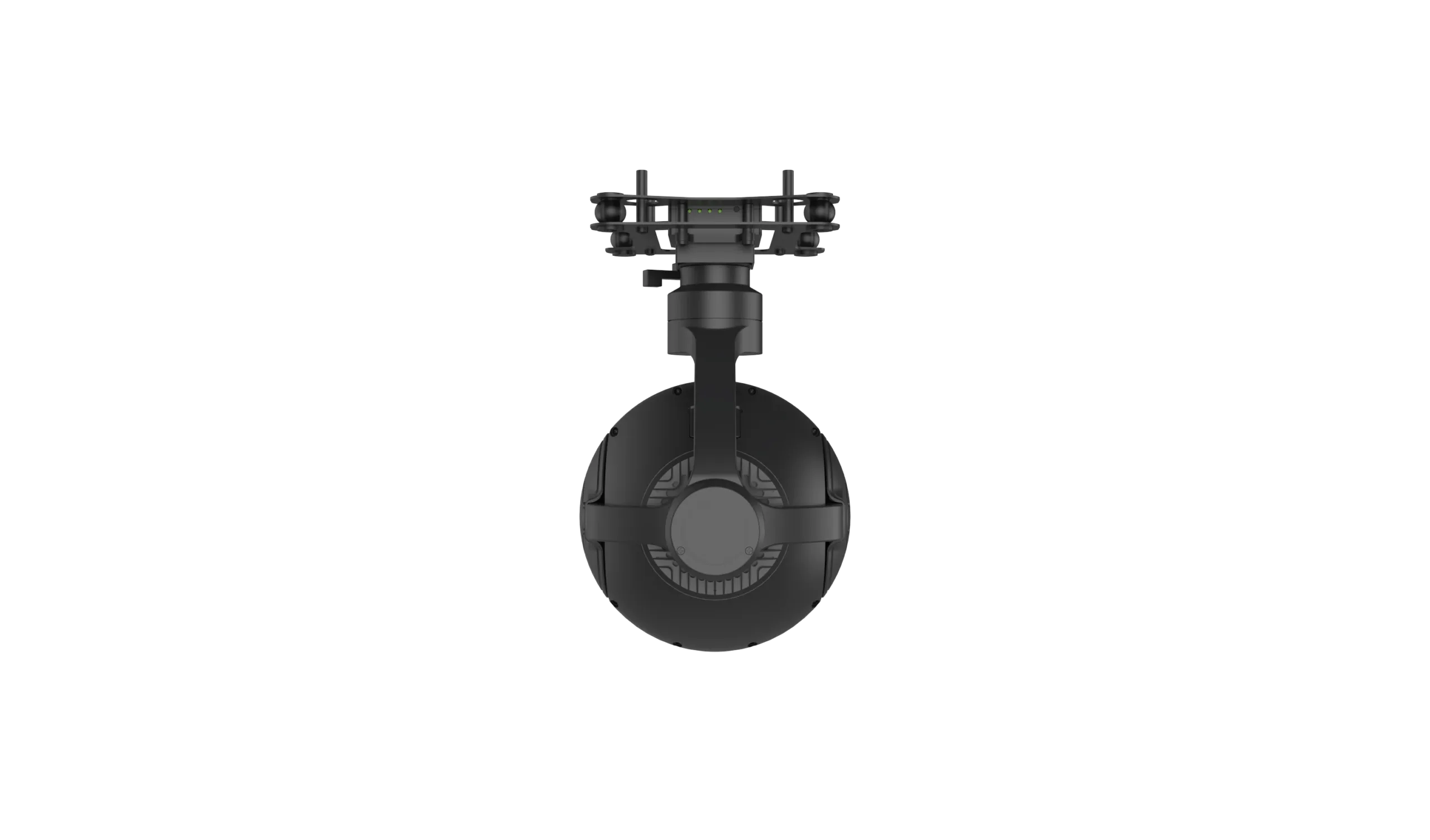

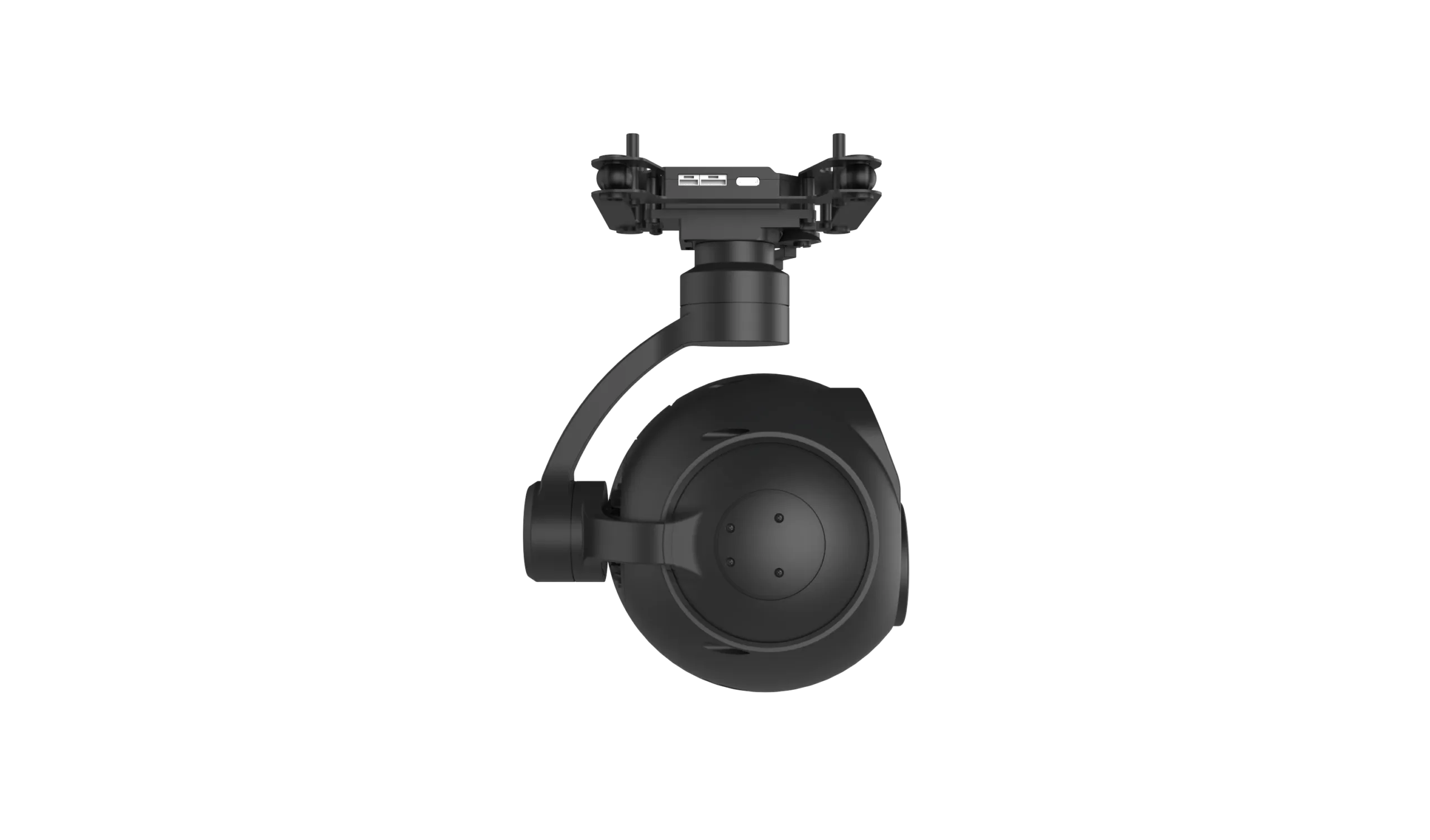

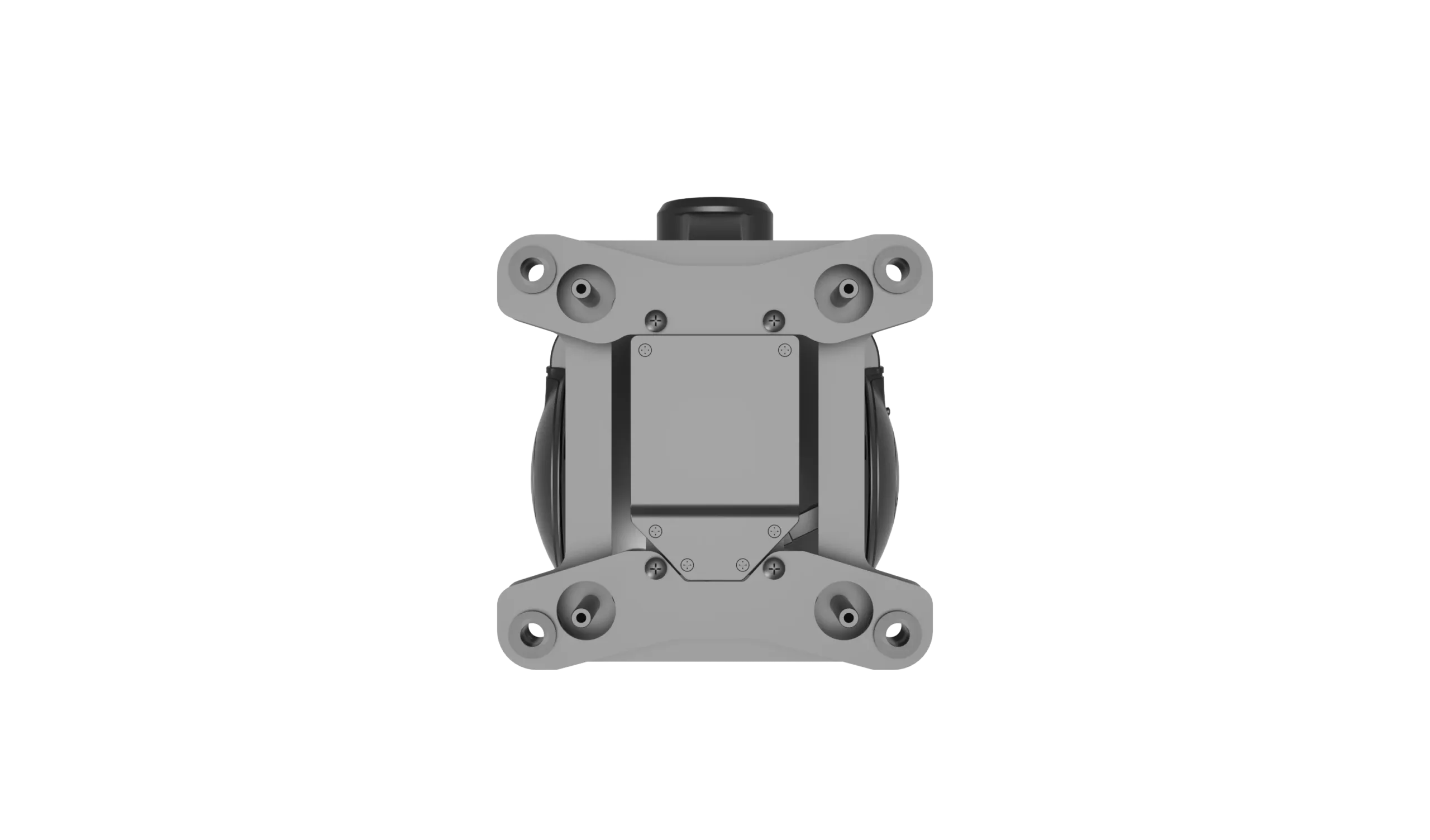

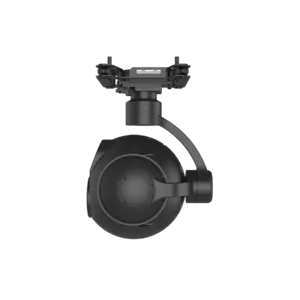

| Product Name | Pod Shendu Camera |
| Application | Payloading integration |
| Model Number | UT130TB |
| Packaging & Delivery | Single item |
| Thermal Imaging camera | |
| Detector Type | Uncooled Focal Plane Detector |
| Working Waveband | 8μm～14μm |
| Detector Resolution | 640×512 |
| Pixel | 12μm |
| Focal Length | 35mm |
| FOV | 12.5°×10°（±5%） |
| Visible Light Camera | |
| Resolution | 1920×1080 |
| Focal length | 4.3mm～129mm |
| FOV | 63.7°×35.8°～2.3°×1.3°(±5%) |
| Laser Ranging Machine | |
| Maximum Ranging Distance | ≥3km (under the condition of visibility ≥15Km) |
| Minimum Ranging Distance | 20m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 1Hz |
| Servo Platform | |
| Horizon | 360°×n(360° continuous) |
| Pitch | -110°～+90°（upward is positive） |
| Roll | -40°+40° |
| Frame Angle Accuracy | ≤0.3° |
| Stable Accuracy | ≤0.1mrad（1σ1°/2Hz、2°1Hz） |
| Maximum Rotating Speed | Position≥50°/s，pitch≥50°/s |
| Maximum Rotating Velocity | Position≥20°/s²，pitch≥20°/s² |
| Imaging Processing Module | |
| Automatically identification | Automatically identify selected targets≥32 |
| Target tracking | Target dimension≥16✖16 |
| Tracking frame rates | 50HZ |
| Image output | RTSP/UDP/RTMP optional, 200kbps～6Mbps settable |
| System | |
| Voltage | 12V～32VDC |
| Consumption | Stable consumption：≤30W |
| Weight | ≤1100g |
| Cube | ≤130mm×153mm×212mm |
| Interface | |
| Control | RS422/TTL/RS422/ |
| Video | Mbps network/TTL/100 megabit |
| Storage | ≤128G storage card（Micro SD card） |
| Image | Jpg format |
| Video format | Avi format |
| Mechanical arms | Straight arms |
| Quick release type | With quick-release |
| Environment | |
| Working temperature | -20℃～＋55℃（-40℃ optional） |
| Storage temperature | -40℃～＋60℃ |
| Vibration | The acceleration is 2g; the three directions of vertical, horizontal and longitudinal are 30 minutes each. |
| Shocking | Max accelaration20g，lasting time 11ms |
| IP | Fly in the drizzle |
