| Product Attribution | |
|---|---|
| Type | Uncooled Focal Plane Detector |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | 12V – 32VDC |
| Protection Class | N/A |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

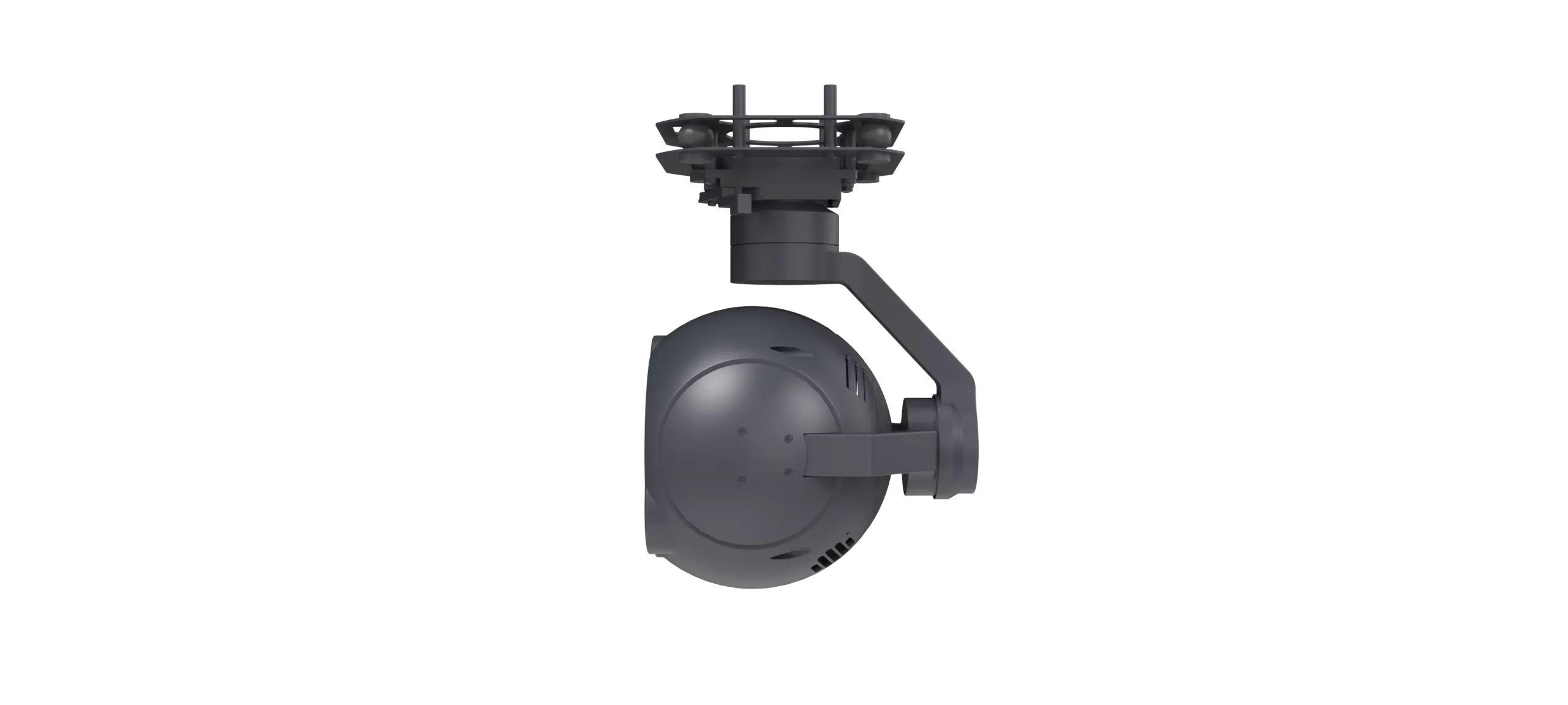

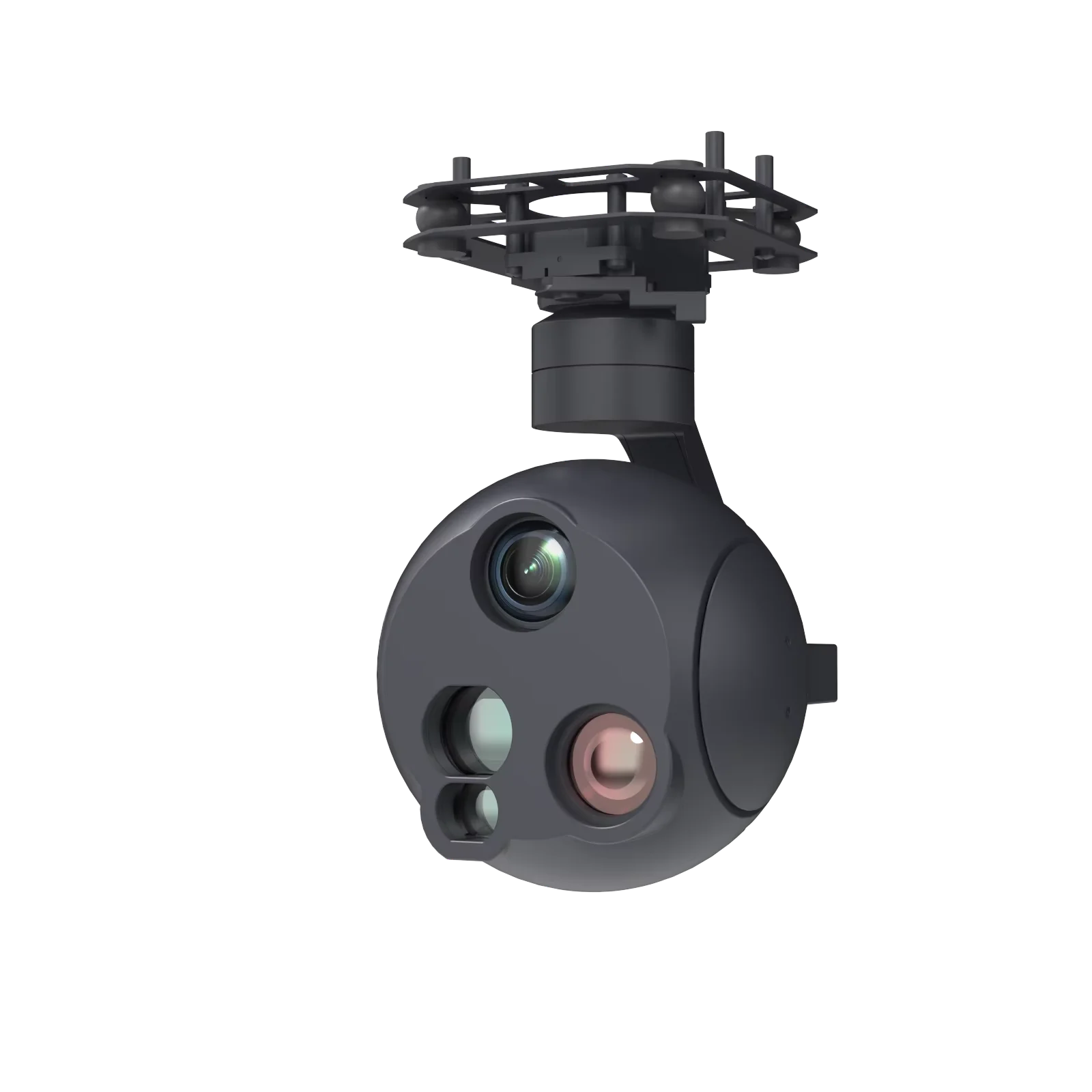

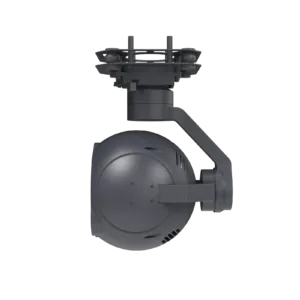

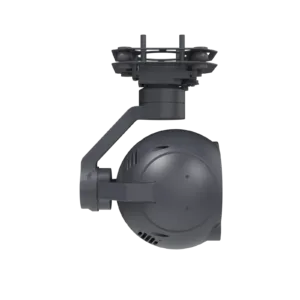

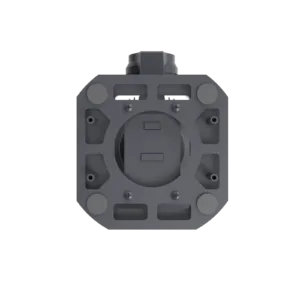

| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number |
UT100T |
| Packaging & Delivery | Single item |
| Thermal Imaging camera | |
| Model |
UT100T
|
| Detector Type | Uncooled Focal Plane Detector |
| Working Waveband | 8μm～14μm |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Lens Focal Length | 25mm |
| Field of View | 17.5°×13.1°（±5%） |
| Visible Light Camera | |
| Resolution | 1920×1080 |
| Focal Length | 4.25mm～170mm |
| Field of View Angle | 62.1°×37.4°～1.7°×0.97° |
| Laser Ranging Machine | |
| Maximum Ranging Distance | 1.2km |
| Minimum Ranging Distance | 5m |
| Ranging Accuracy | 5m |
| Ranging Frequency | 1 Hz |
| Servo Platform | |
| Horizon | 360°×n |
| Pitch | -100°～+45°（upward is positive） |
| Roll | -40°+40° |
| Frame Angle Accuracy | ≤0.3° |
| Stable Accuracy | ≤0.1mrad（1σ1°/2Hz、2°1Hz） |
| Maximum Rotating Speed | Position≥50°/s，pitch≥50°/s |
| Maximum Rotating Velocity | Position≥20°/s²，pitch≥20°/s² |
| Imaging processing Module | |
| Automatic Identification | Automatic identification of human and vehicle targets Number ≥32 |
| Target tracking | Target dimension≥16✖16 |
| Tracking Frame Rate | 50Hz |
| Image Output | RTSP/UDP/RTMP optional, code rate 100kbps～6Mbps settable |
| System Parameters | |
| Voltage | 12V – 32VDC |
| Consumption | Stable consumption：30W |
| Weight | 750g |
| Cube | ≤108mm×123mm×172mm |
| Interface | |
| Control | RS232/TTL/RS422/Mbps（optional） |
| Video | 100 Mbps network |
| Storage | ≤128G storage card（Mini SD card） |
| Image | Jpg format |
| Video format | Avi format |
| Mechanical arms | Oblique arms |
| Environmental Adaptability | |
| Working Temperature | -20℃～＋55℃ |
| Storage Temperature | -40℃ ~ +60℃ |
| Vibration | The acceleration is 2g; the three directions of vertical, horizontal and longitudinal are 30 minutes e |
| Shocking | Max accelaration20g，lasting time 11ms |
| IP | Fly in the drizzle |
