| Product Attribution | |
|---|---|

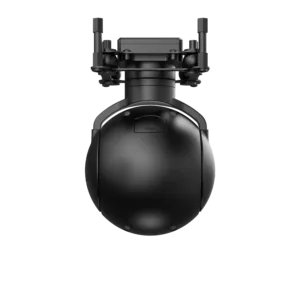

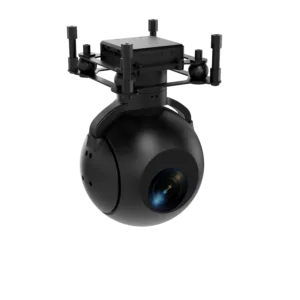

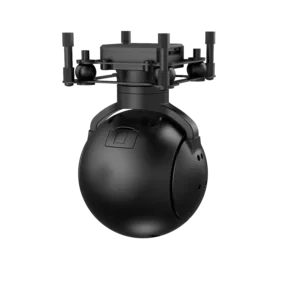

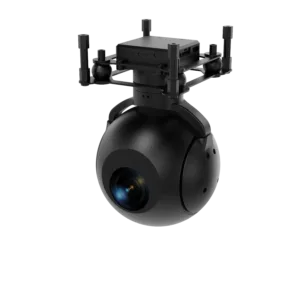

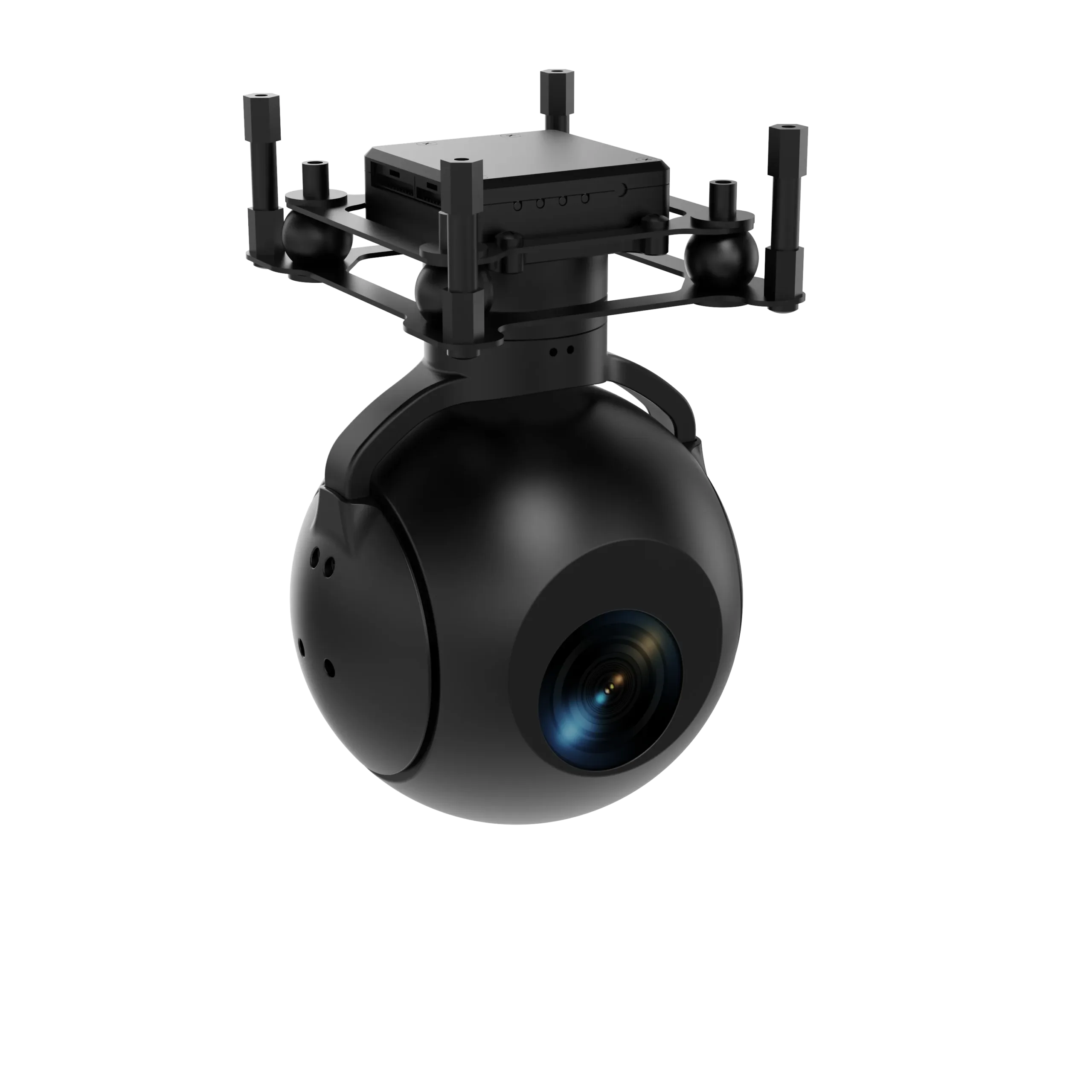

| Type | Two-axis Gimbal Camera |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | 12V – 32VDC |
| Protection Class | IP54 |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | environmental monitoring |
| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number | UD090S |
| Packaging & Delivery | Single item |
| Infrared Thermal Imager | |
| Detector Type | Uncooled Focal Plane Detector |
| Working Waveband | 8μm – 14μm |
| Detector Resolution | 640×512 |
| Pixel Size | 12μm |
| Lens Focal Length | 25mm |
| Field of View | 79.7°×50.3° |
| Visible Light Camera | |
| Resolution | 2560×1440 |
| Focal Length | 4.8mm～48mm |
| Field of View Angle | 60.2°×33.9°～6.6°×3.7°(±5%) |
| Video Resolution | 1920×1080 |
| Servo Platform | |
| Pan Angle | 360°×n (360° continuous rotation) |
| Tilt Angle | -120° ~ +90° (positive upward) |
| Angular Position Accuracy | ≤0.3° |
| Stabilization Accuracy | ≤0.1mrad (1σ) |
| Maximum Angular Velocity | Azimuth≥50°/s, Pitch≥50°/s |
| Image Processing | |
| Automatic Identification | Automatic identification of human and vehicle targets Number ≥32 |
| Automatic Tracking | arget size ≥16×16 |
| Tracking Frame Rate | 50Hz |
| Image Output | RTSP/UDP/RTMP optional, code rate 100kbps～6Mbps settable |
| System parameters | |
| Image Tracking | Automatically track the selected target |
| Voltage | 12V – 32VDC |
| Consumption | Stable Power Consumption: ≤12W, Peak Power Consumption: ≤20W |
| Weight | ≤400g |
| Dimensions | 88mm×81.6mm×131mm |
| Interface | |
| Control Interface | RS232/TTL/RS422/ 100 Mbit(optional) |
| Video Interface | 100 megabit Ethernet |
| Storage Interface | ≤128G Memory Card (Mini SD Card) |
| External connector | J30-15ZKP |
| Picture Format | jpg Format |
| Video Format | avi Format |
| Environmental Adaptability | |
| Working Temperature | -20℃ ~ +55℃（-40℃ optional） |
| Storage Temperature | -40℃ ~ +60℃ |
| Anti-launch Impact | ≥400g |
