| Product Attribution | |
|---|---|
| Type | Cooled FPA |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | hot stamping, 3D Printing |
| Accuracy | Ultra high level |
| Voltage | 20V – 32VDC |
| Protection Class | IP54 |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

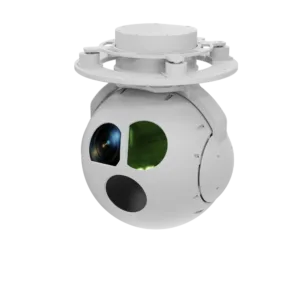

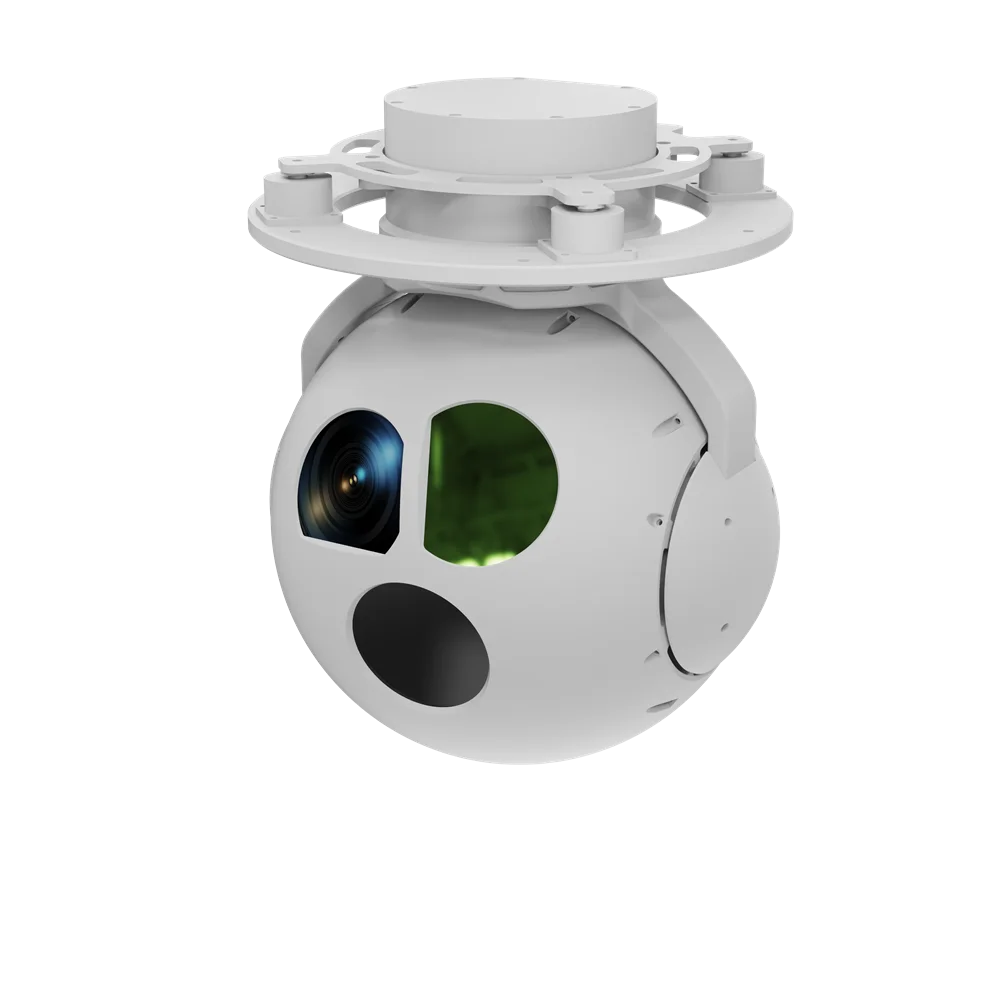

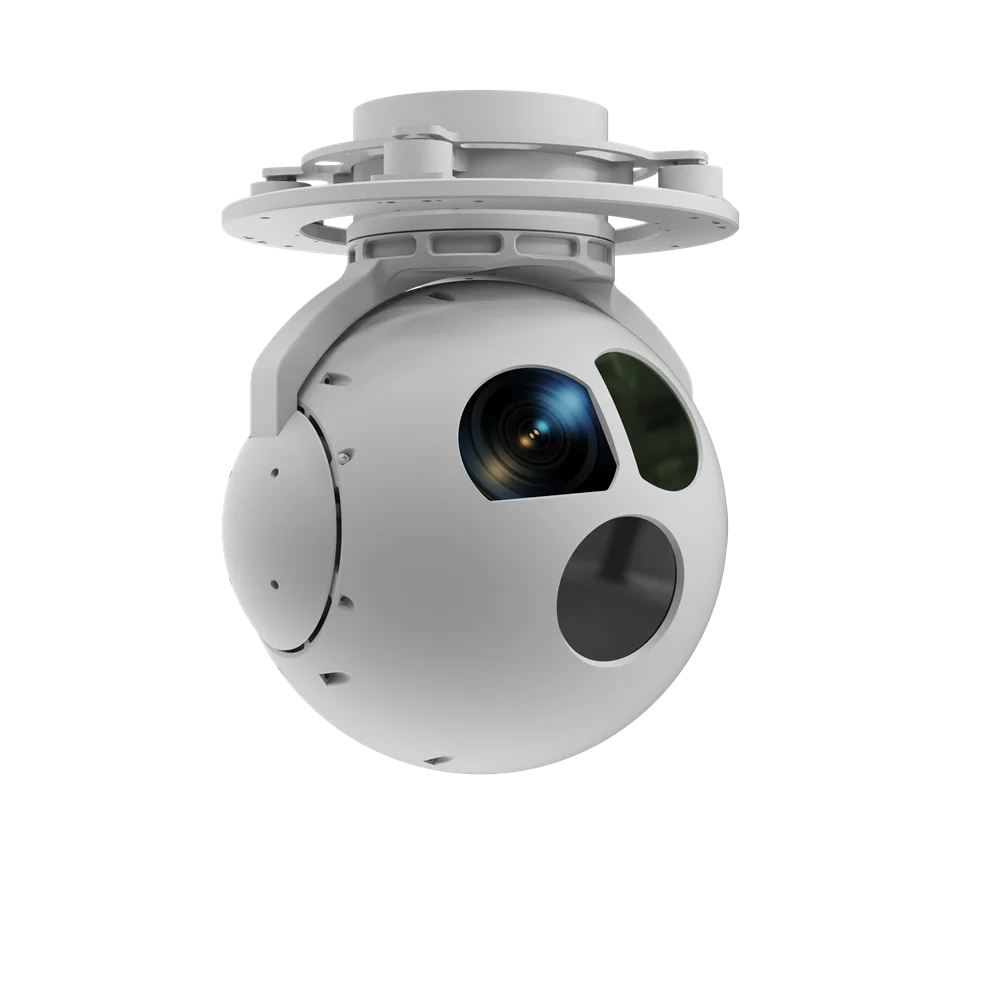

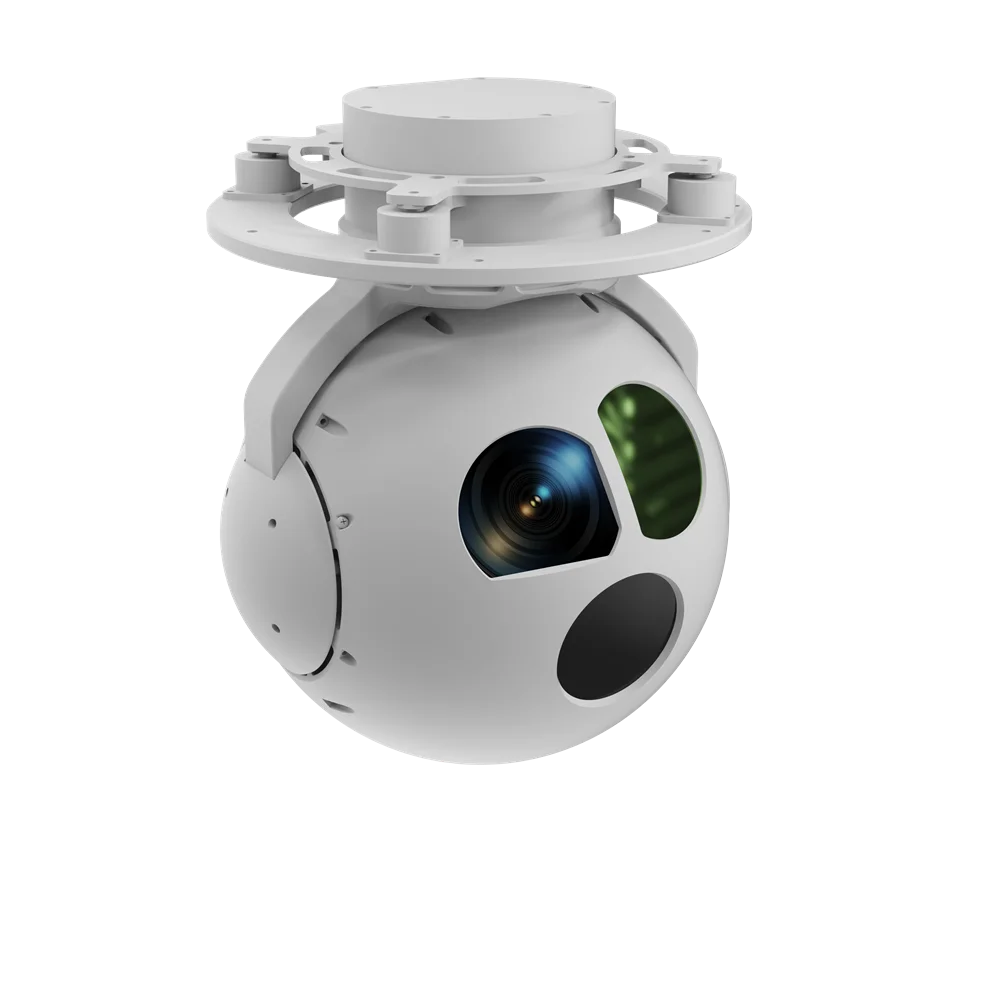

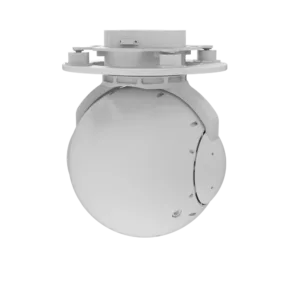

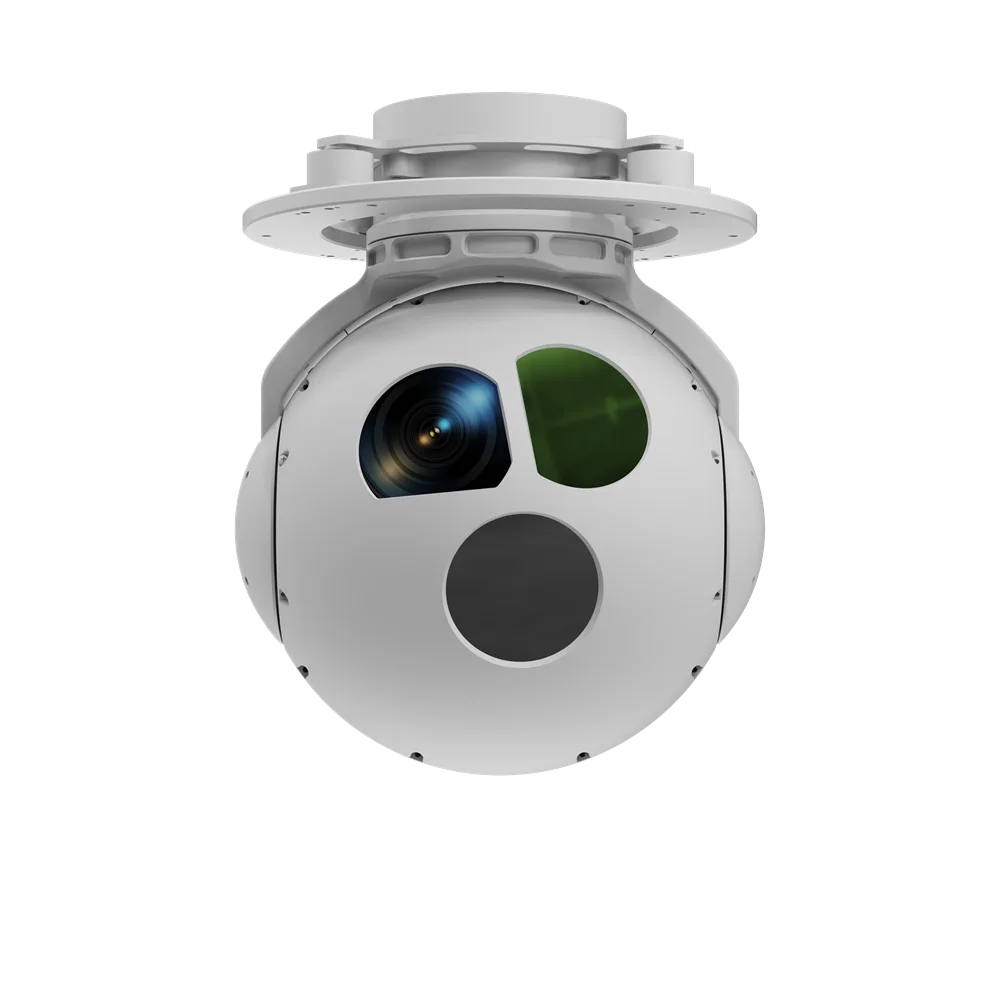

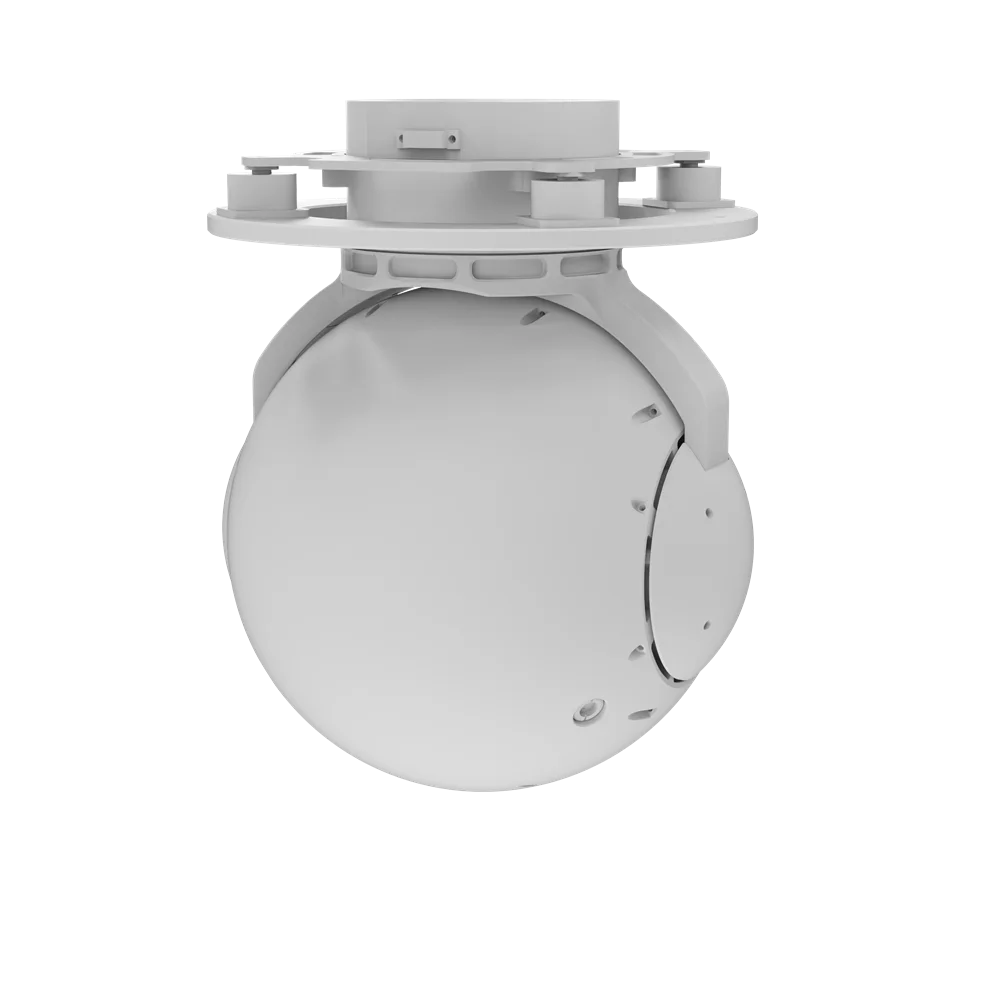

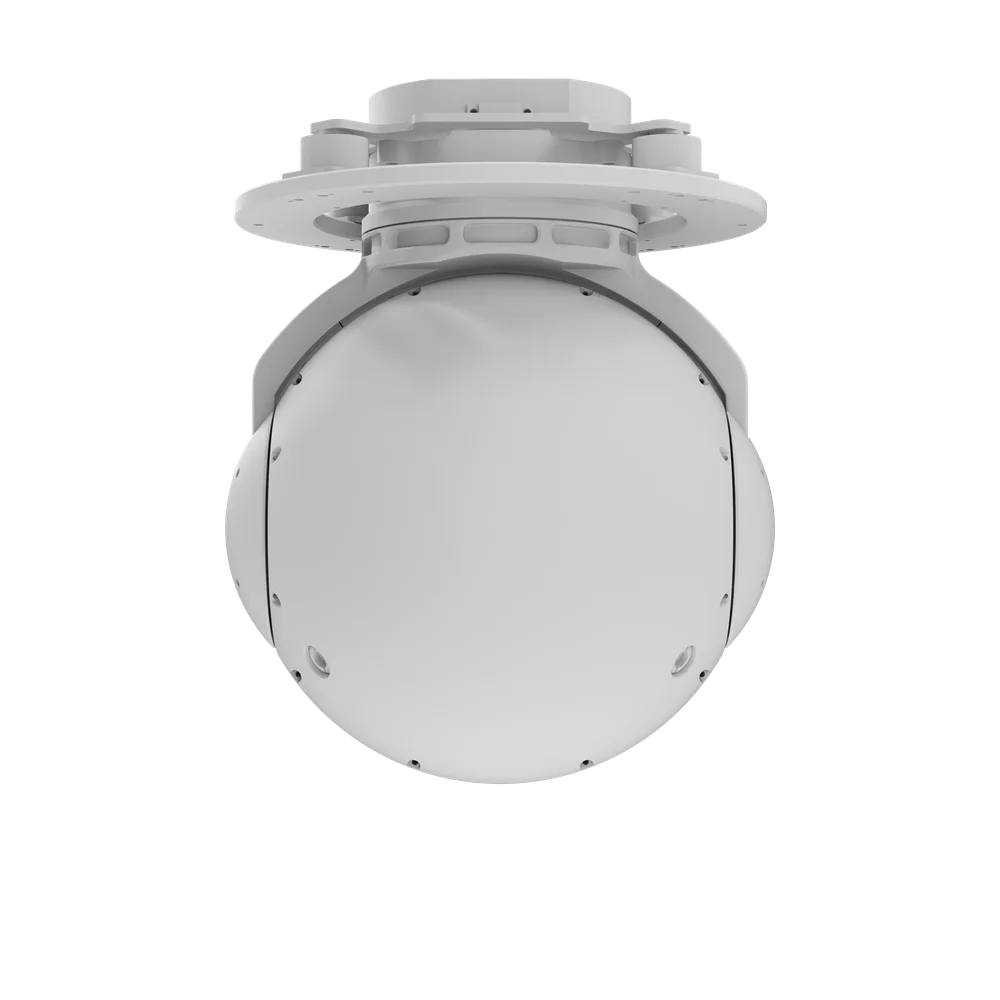

| Product Name | Pod Shendu Camera |
| Application | Payloading integration |
| Model Number | UD220TD |
| Packaging & Delivery | Single item |
| Thermal Imaging camera | |
| Model | UD220TD |
| Detector Type | Cooled FPA |
| Wave length | 3μm～5μm |
| Resolution | 640×512 |
| Pixel Size | 15μm |
| Lenses | 20mm～275mm |
| FOV | 27.0°×21.7°～2.0°×1.6° |
| NETD | NETD≤20mK |
| MRTD | MRTD≤180mK |
| Visible light camera | |
| Resolution | 1920×1080 |
| Wave length | 0.4μm～0.9μm |
| Pixel size | 2.8μm |
| Optical magnification | 30X |
| Hybrid zoom | 60X |
| Focal length | 4.3mm～129mm |
| FOV | 63.7°×35.8°～2.3°×1.3°(±5%) |
| Focusing way | Auto、Manual |
| Resolution | 0.01Lux（black & white） |
| Laser Range finder | |
| Wave Length | 1535nm |
| Max. distance | ≥6km（visibility≥15Km） |
| Min. distance | ≤20m |
| Accuracy | ≤2m |
| Frame rates | 1～5Hz |
| Servo platform | |
| Pan | 360°×n( 360° continuous rotary） |
| Tilt | -115°～+90°（upward is positive） |
| Accuracy angular | ≤0.06°（1σ） |
| Accuracy stability | ≤0.05mrad（1σ） |
| Angular position accuracy | ≤1mrad（1σ） |
| Maximum turning speed | pan≥60°/s，tilt≥60°/s |
| Maximum turning acceleration | Pan≥100°/s²，tilt≥100°/s² |
| Image processing | |
| Auto Identification | Auto identify typical human, vehicle, the number of the targets≥32 |
| Target tracking | Target size≥16×16 |
| Tracking Frame rates | 50Hz |
| Image output | RTSP/UDP/RTMP optional，bit 200kbps～6Mbps configurable |
| System parameters | |
| Supplying Voltage | 20V～32VDC |
| Consumption | Stable consumption：≤60W |
| Weight | ≤5.5Kg |
| Cube | ≤220mm×239mm×295mm |
| Interface | |
| Control | RS422/Mb network |
| Video | HD-SDI/Mb network |
| Storage | ≤128G storage（Micro SD card） |
| Image format | Jpg formatv |
| Control | Avi format |
| Environment | |
| Work temperature | -20℃～＋60℃（-40℃ optional） |
| Storage Temperature | -40℃～＋65℃ |
| Vibration | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Shocking | Peak acceleration 20g, duration 11ms |
| IP | Light raining proof |
