| Product Attribution | |
|---|---|
| Type | Uncooled Focal Plane Detector |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | 12V – 32VDC |
| Protection Class | N/A |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

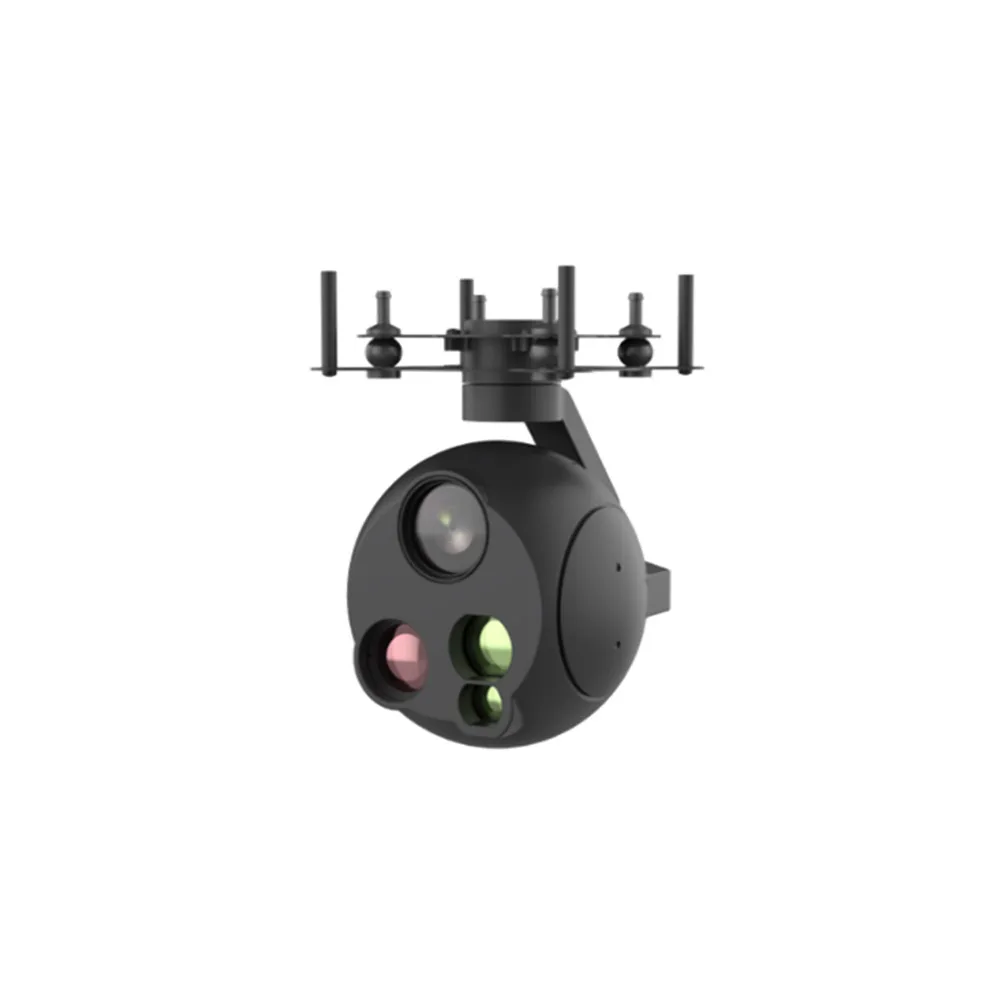

| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number | UT115T |
| Packaging & Delivery | Single item |
| Thermal Imaging camera | |
| Model |
UT115T
|
| Detector Type | Uncooled Focal Plane Detector |
| Working Waveband | 8μm～14μm |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Lens Focal Length | 25mm |
| Field of View | 17.5°×14°（±5%） |
| Visible Light Camera | |
| Resolution | 1920×1080 |
| Focal Length | 5.1mm～51mm |
| Field of View Angle | 54°×31°～4.9°×4.0°(±5%) |
| Laser Ranging Machine | |
| Maximum Ranging Distance | ≥1.2km (under the condition of visibility ≥15K |
| Minimum Ranging Distance | ≤5m |
| Ranging Accuracy | ≤1m |
| Ranging Frequency | 1 Hz |
| Servo Platform | |
| Horizon | 360°×n(360° continuous) |
| Pitch | -115°～+90°（upward is positive） |
| Roll | -40°+40° |
| Frame Angle Accuracy | ≤0.3° |
| Stable Accuracy | ≤0.1mrad（1σ1°/2Hz、2°1Hz） |
| Maximum Rotating Speed | Position≥50°/s，pitch≥50°/s |
| Maximum Rotating Velocity | Position≥20°/s²，pitch≥20°/s² |
| Imaging processing Module | |
| Automatic Identification | Automatic identification of human and vehicle targets Number ≥32 |
| Target tracking | Target dimension≥16✖16 |
| Tracking Frame Rate | 50Hz |
| Image Output | RTSP/UDP/RTMP optional, code rate 100kbps～6Mbps settable |
| System Parameters | |
| Voltage | 12V – 32VDC |
| Consumption | Stable consumption：30W |
| Weight | ≤840g |
| Cube | ≤115mm×131mm×200mm |
| Interface | |
| Control | RS422 |
| Video | Mbps network/TTL/100 megabit |
| Storage | ≤128G storage card（Micro SD card） |
| Image | Jpg format |
| Video format | Avi format |
| Mechanical arms | Straight arms |
| Quick release type | With quick-release |
| Environmental Adaptability | |
| Working Temperature | -20℃～＋60℃（-40℃ optional） |
| Storage Temperature | -40℃ ~ +60℃ |
| Vibration | The acceleration is 2g; the three directions of vertical, horizontal and longitudinal are 30 minutes e |
| Shocking | Max accelaration20g，lasting time 11ms |
| IP | Fly in the drizzle |
