| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
12V – 32VDC |
| Protection Class |
IP54 |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

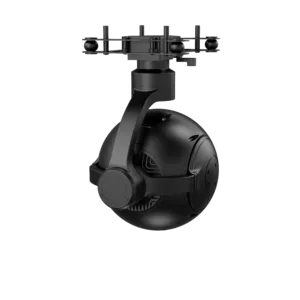

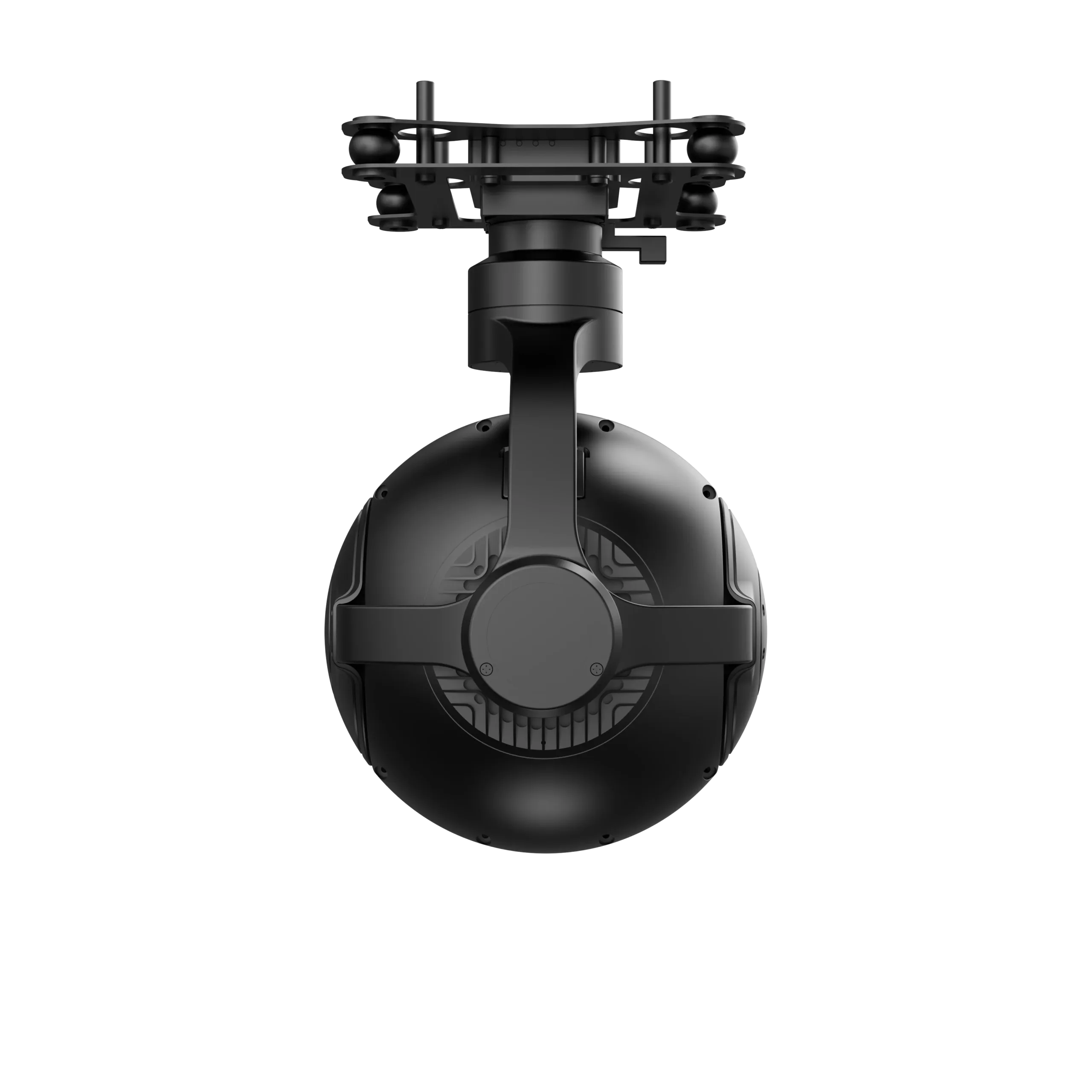

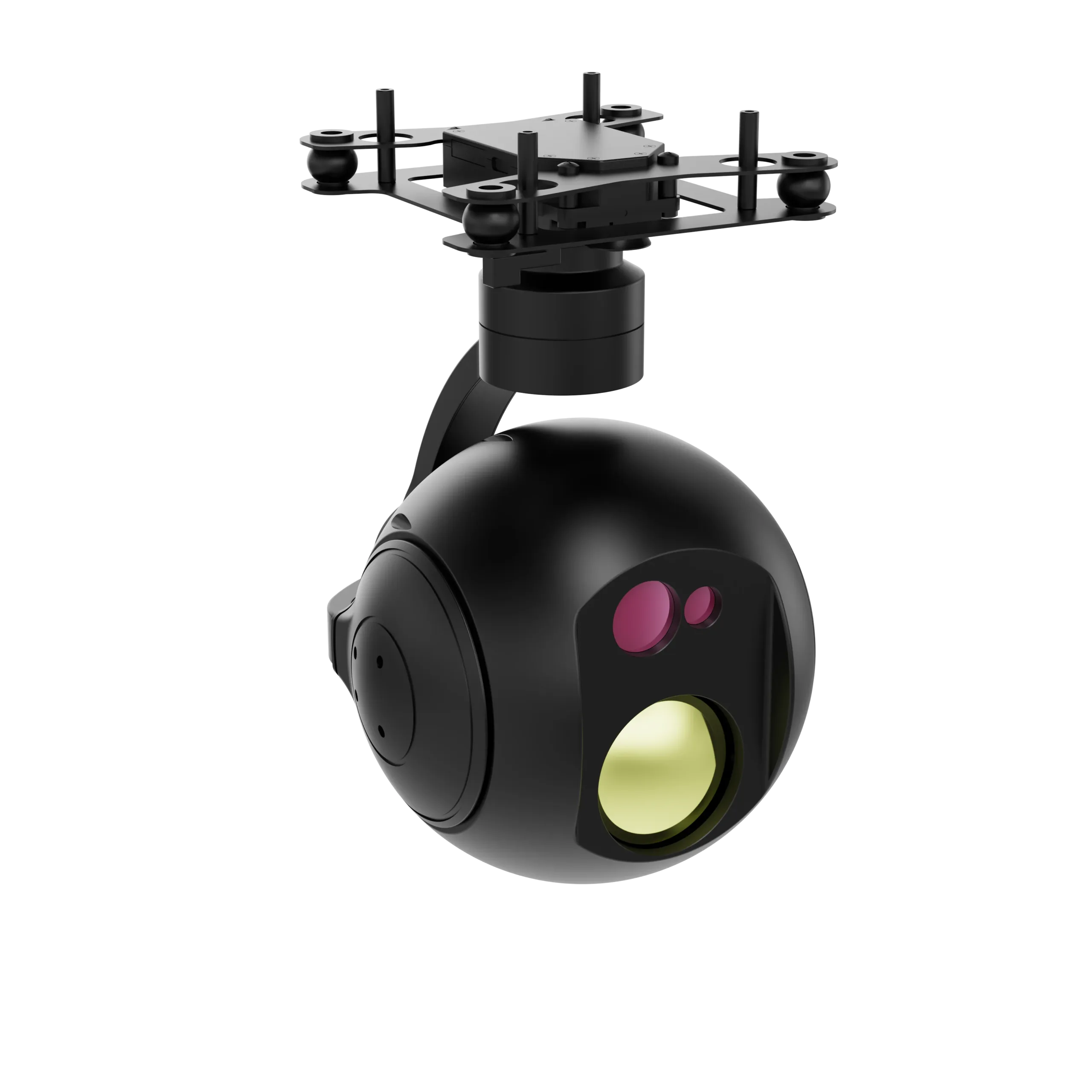

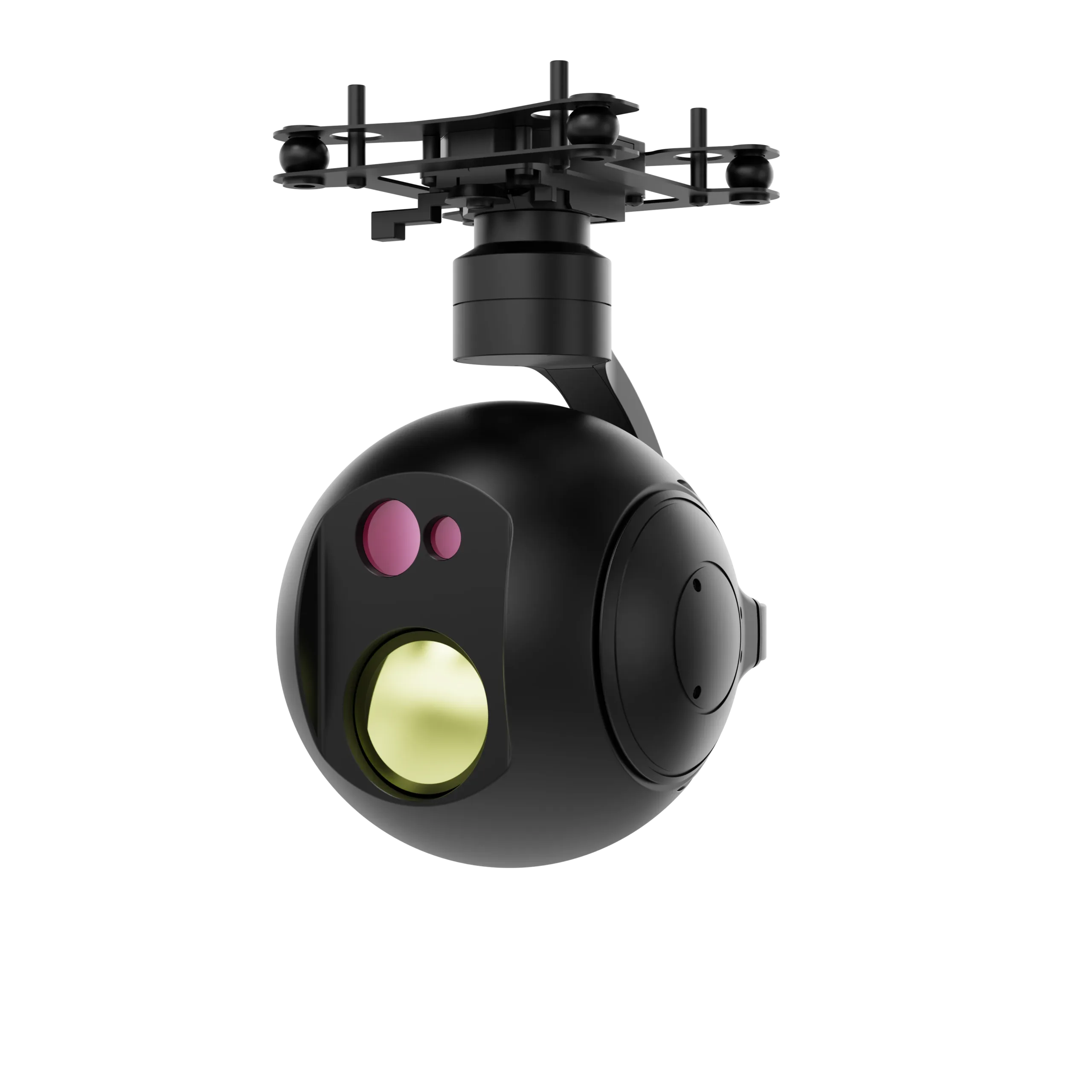

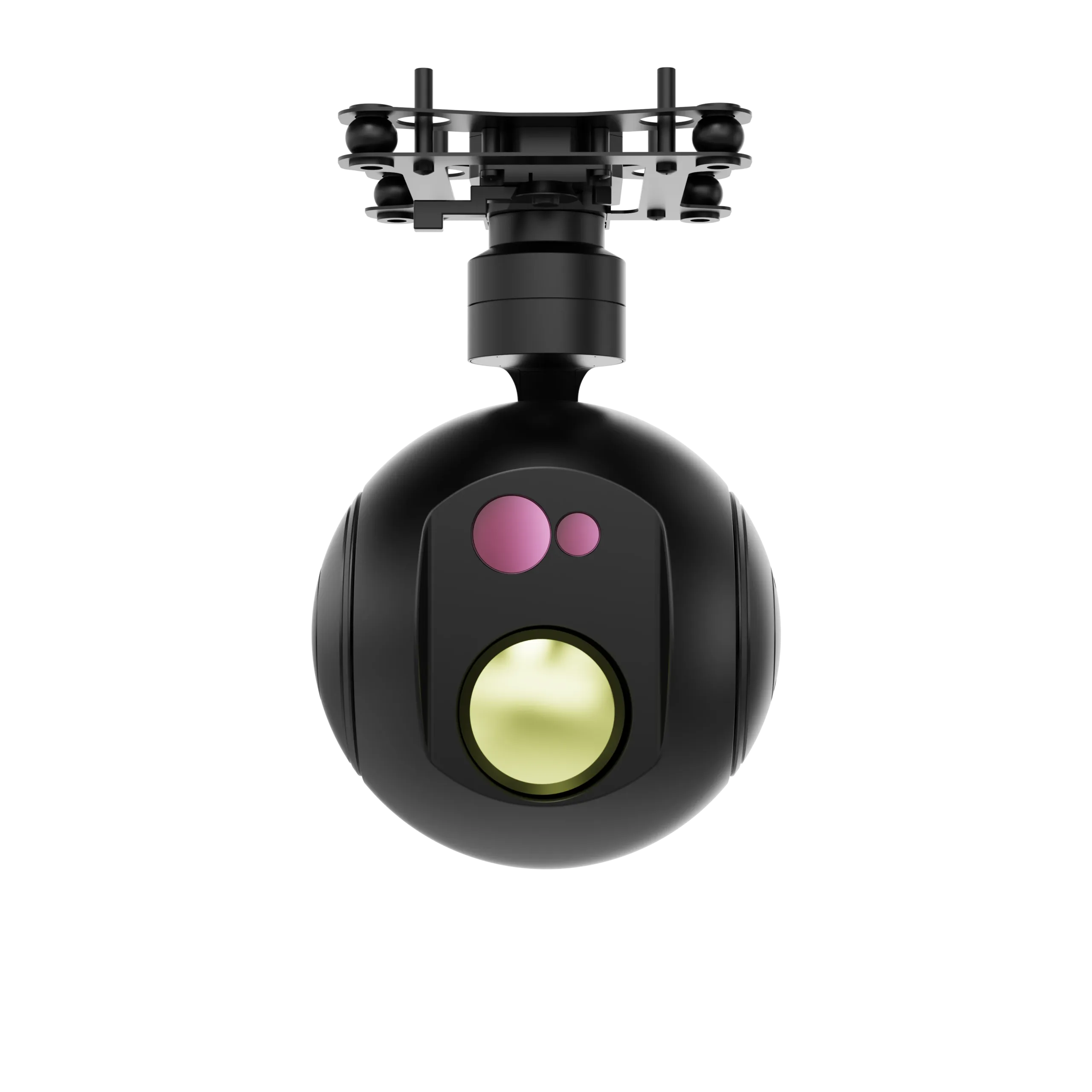

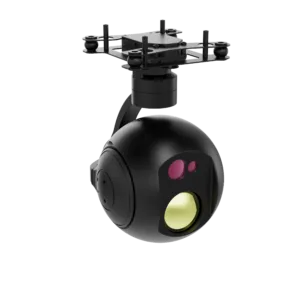

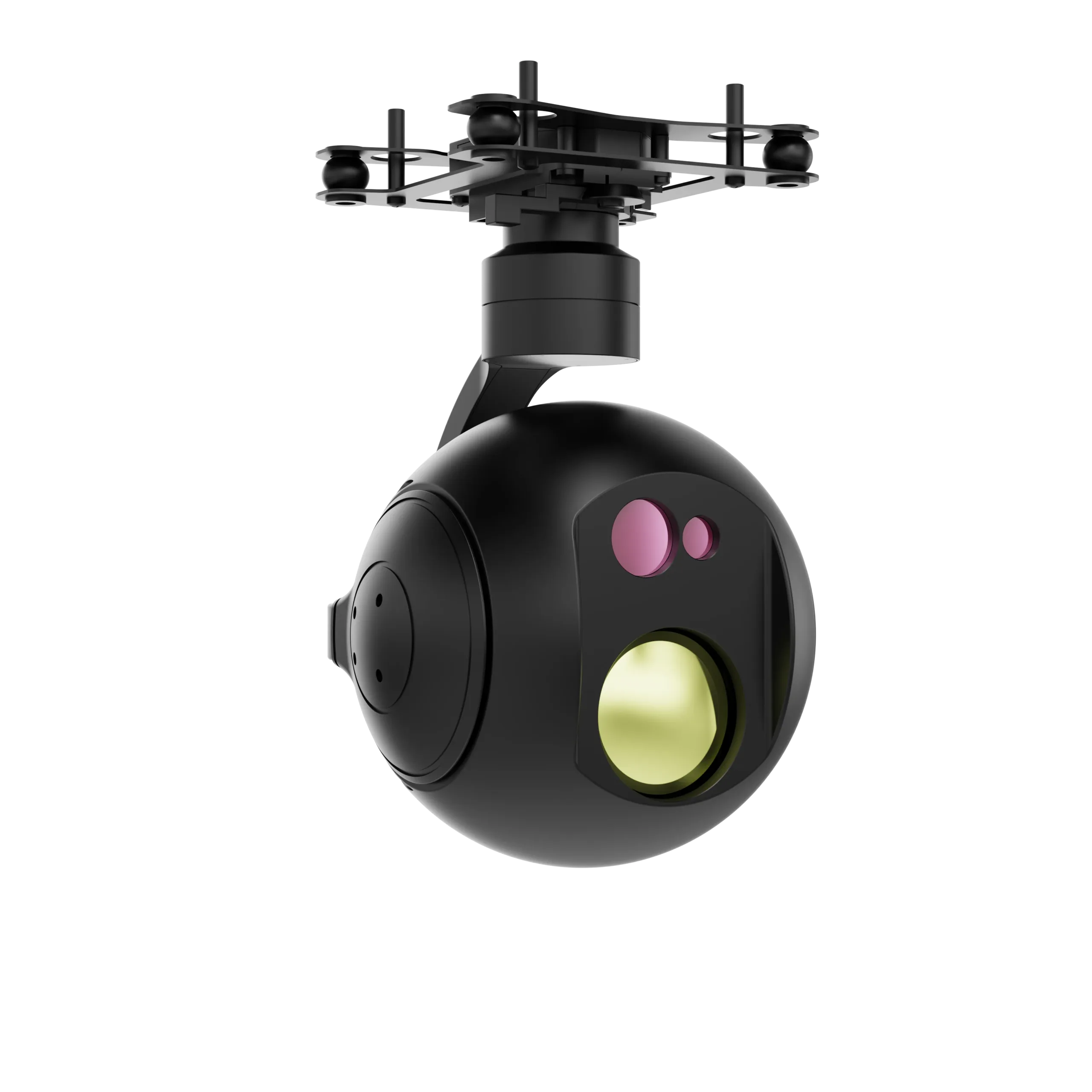

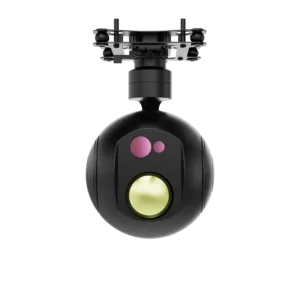

Pod Shendu Camera |
| Standard |
OED,ODM |
| Model Number |
UT130DB |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Model |
UT130DC |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
640×512 |
| Pixel Size |
12μm |
| Lens Focal Length |
35mm |
| Field of View |
12.5°×10°（±5%） |
|
|
| Laser Ranging Machine |
| Maximum Ranging Distance |
≥3km (under the condition of visibility ≥15K |
| Minimum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤2m |
| Ranging Frequency |
1 ~5Hz |
|
|
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-110° ~ +90° (positive upward) |
| Roll Angle |
-40°～+40° |
| Frame angle accuracy |
≤0.3°（1σ） |
| Stabilization Accuracy |
≤0.1mrad (1σ) |
| Maximum Rotation Speed |
Azimuth≥50°/s, Pitch≥50°/s |
| Maximum Rotational Acceleration |
Azimuth≥20°/s², Pitch≥20°/s² |
| Imaging Processing Module |
| Automatically identification |
Automatically identify selected targets≥32 |
| Target tracking |
Target size ≥16×16 |
| Tracking frame rates |
50Hz |
| Image Output |
RTSP/UDP/RTMP optional, 200kbps～6Mbps s |
|
|
| System Parameters |
| Voltage |
12V – 32VDC |
| Consumption |
Stable Power Consumption: ≤30W, 24VDC power-up peak current ≤5A |
| Weight |
985g |
| dimensions |
≤130mm×155mm×206mm |
|
|
| Interface |
| Control Interface |
RS232/TTL/RS422/ 100 Mbit(optional) |
| Video Interface |
100 megabit Ethernet |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
| Arm Type |
Oblique arm |
| Quick Release Type |
With quick release |
| Environmental Adaptability |
| Working Temperature |
-20℃ ~ +55℃ (-40℃ optional) |
| Storage Temperature |
-40℃ ~ +60℃ |
| Vibration Condition |
Acceleration of 6g; 5 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
