| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
12V – 32VDC |
| Protection Class |
N/A |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

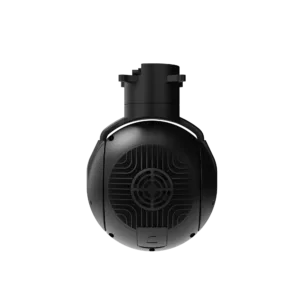

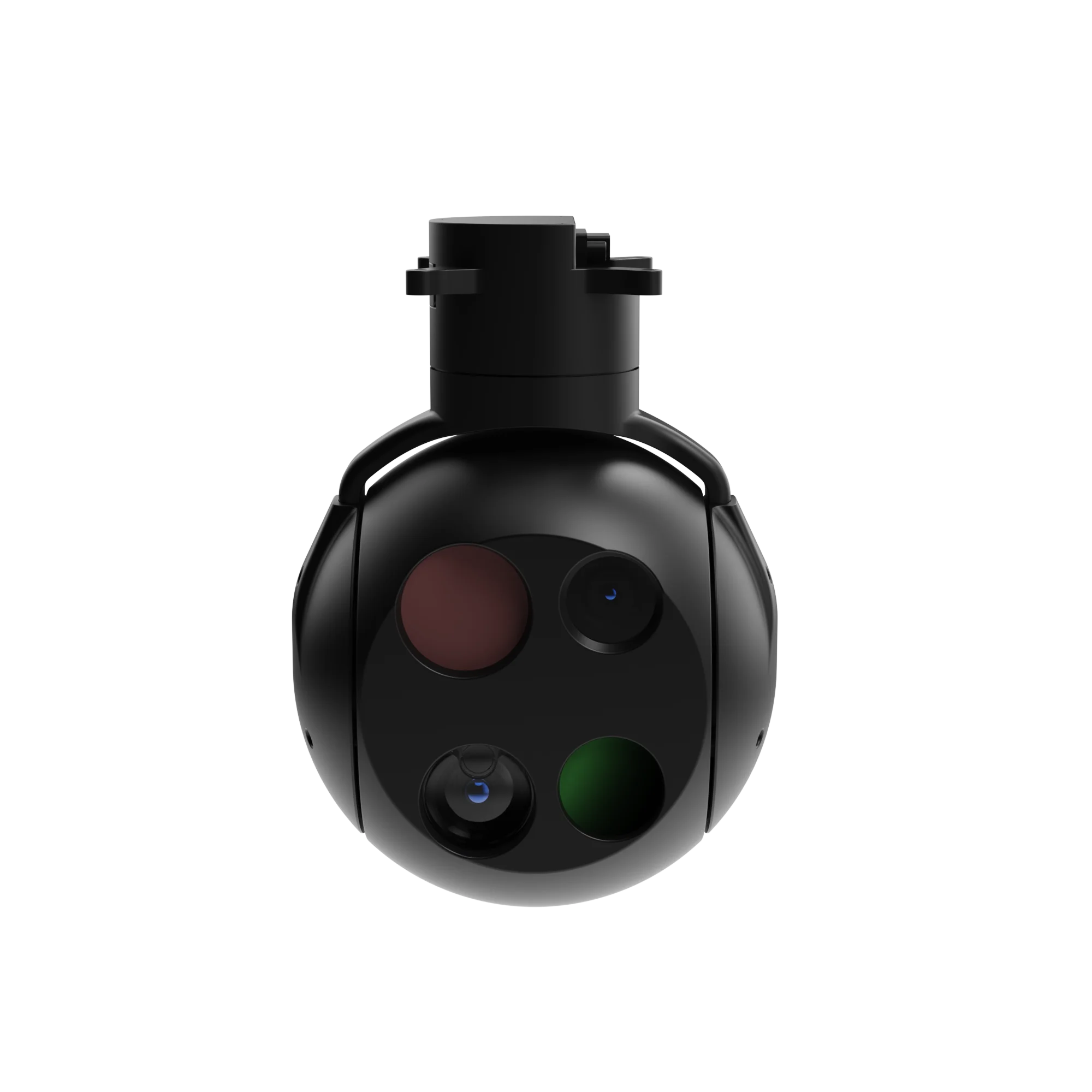

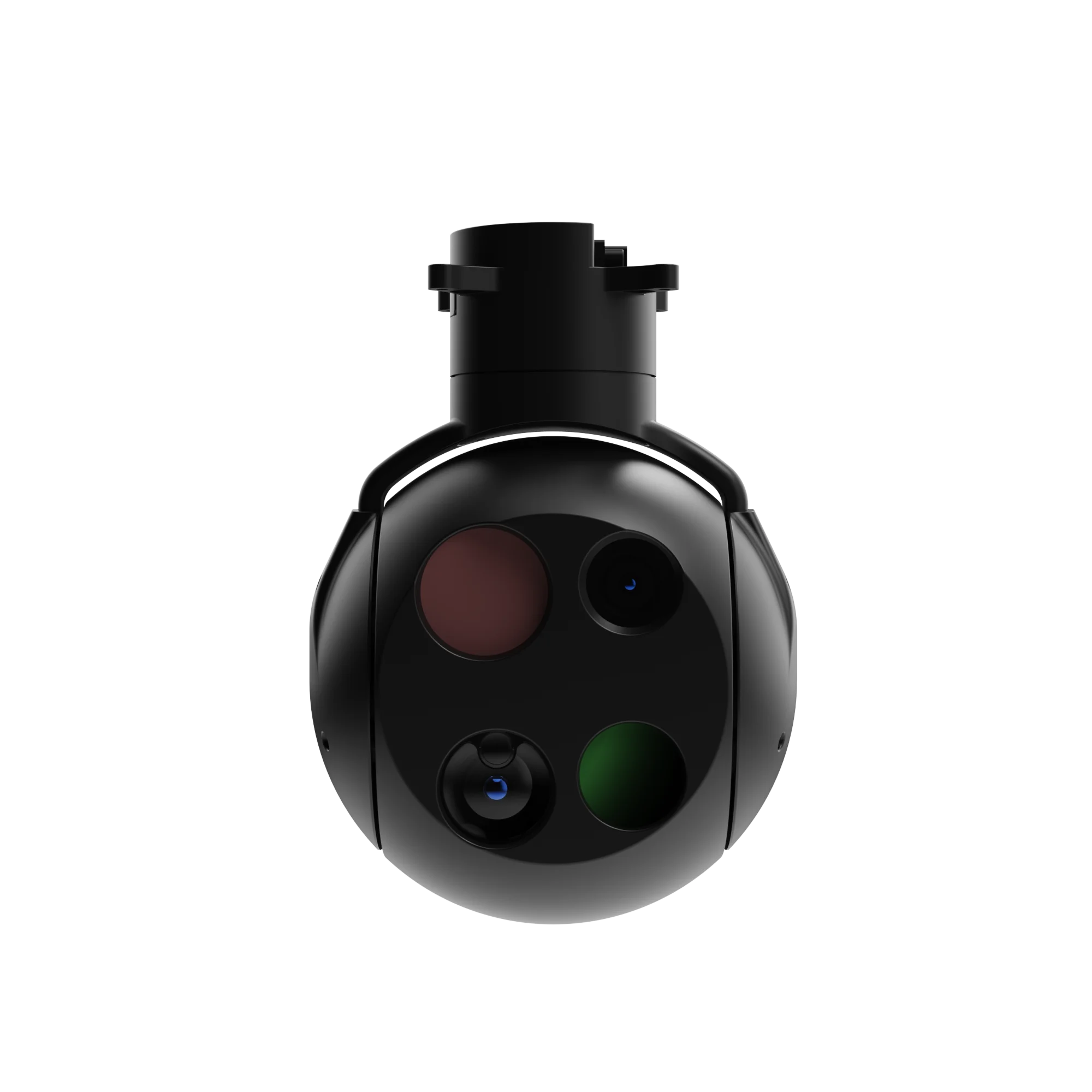

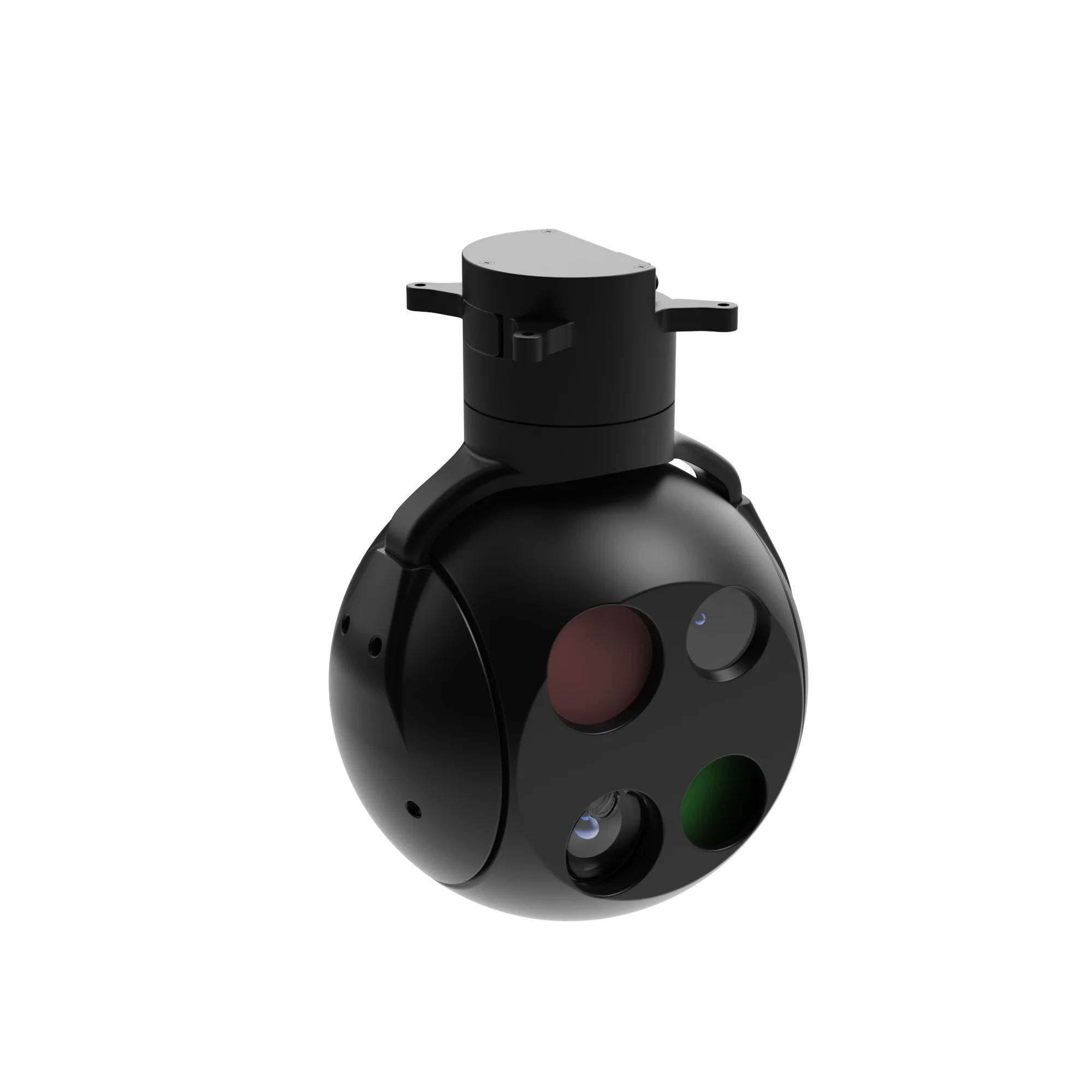

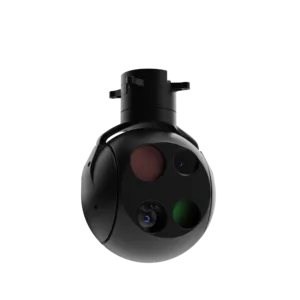

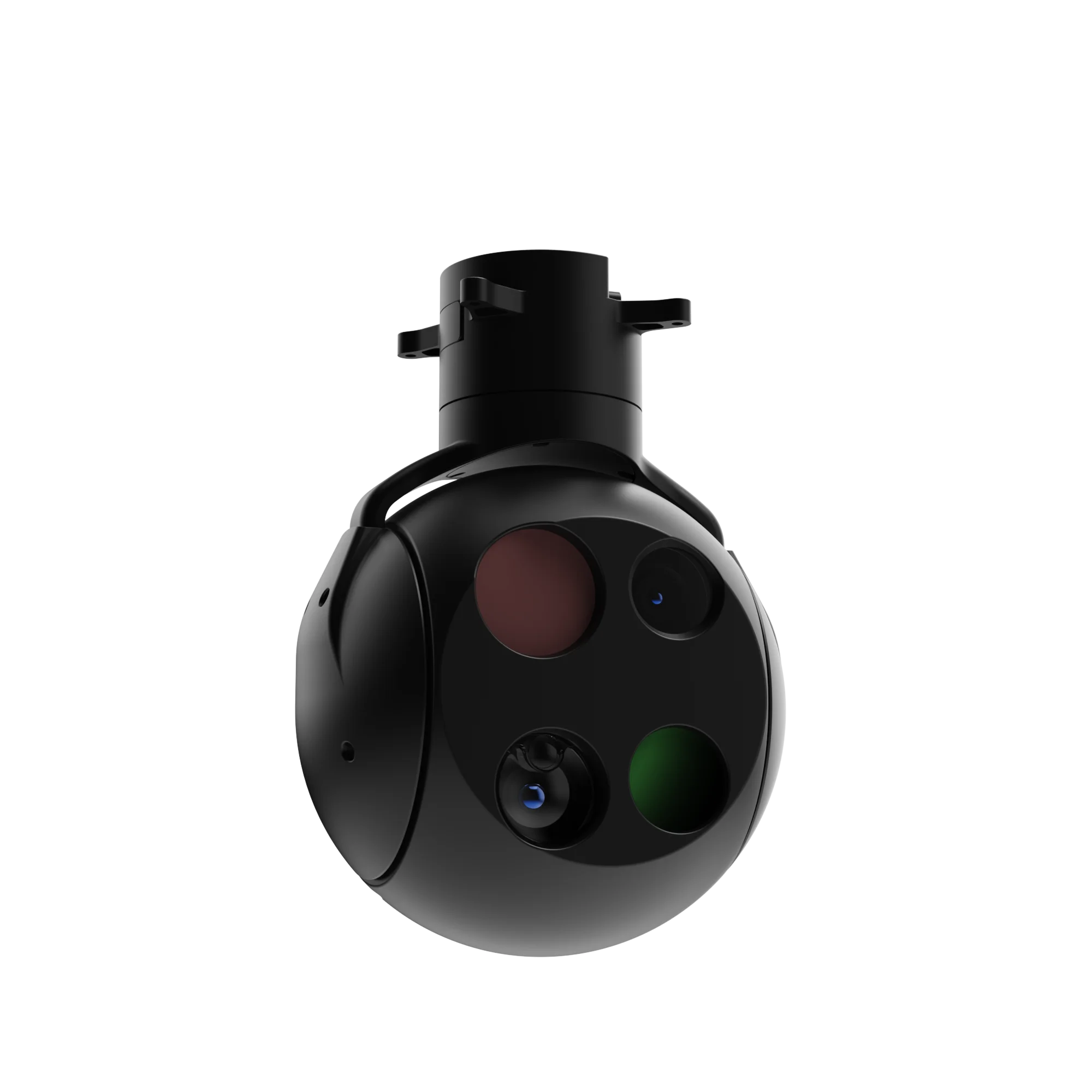

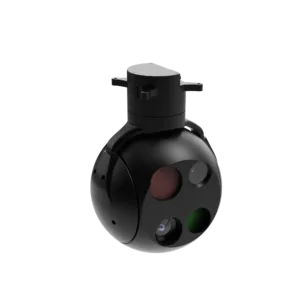

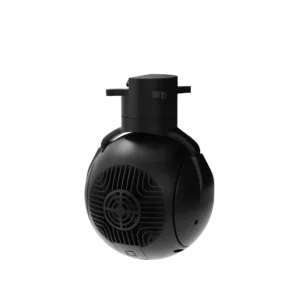

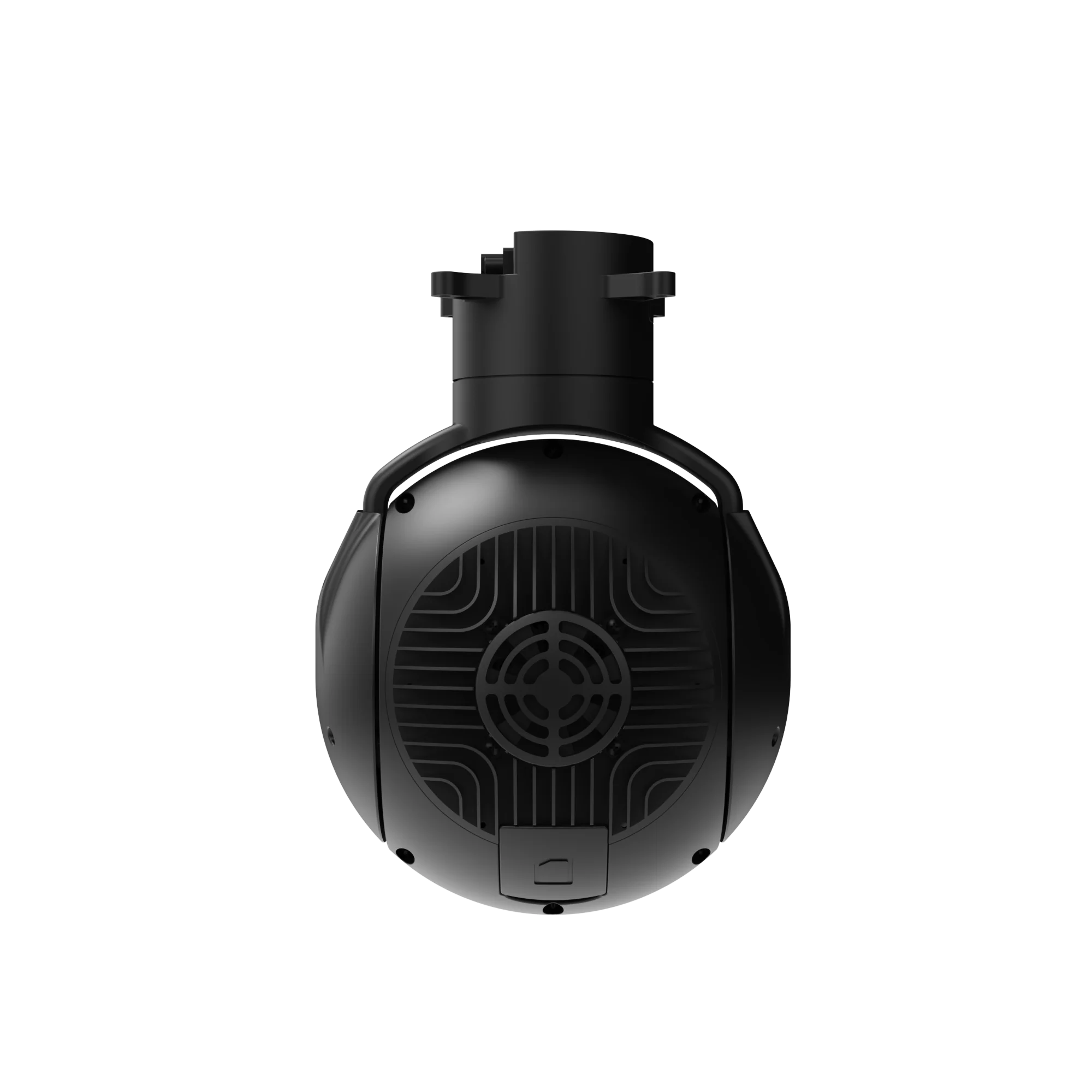

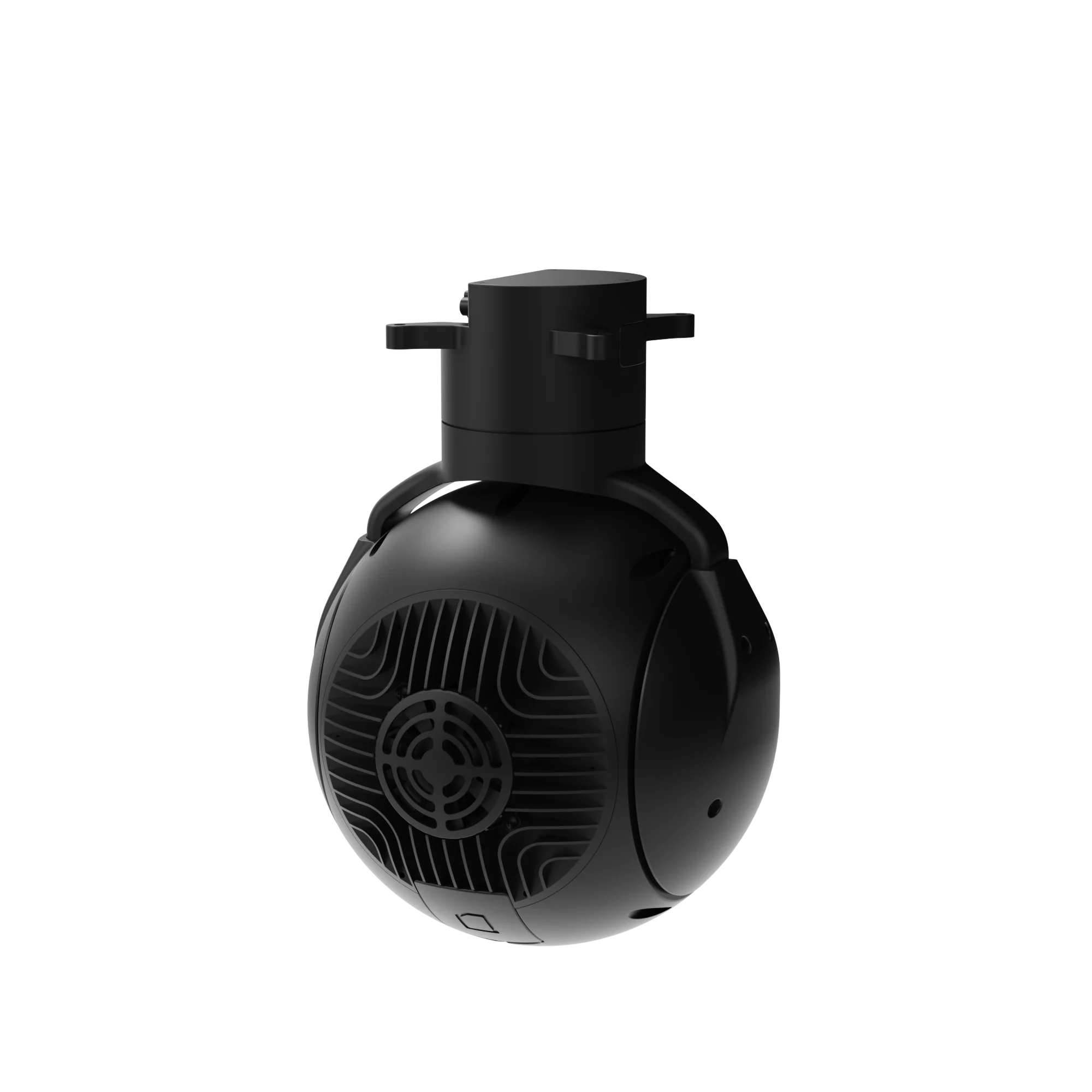

Pod Shendu Camera |
| Application |
Payloading integration |
| Model Number |
UD100Q |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Model |
UD100Q |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
640×512 |
| Pixel Size |
12μm |
| Lens Focal Length |
25mm |
| Field of View |
17.5°×14.0° |
| Palette |
10 |
| Electronic Zoom |
1～4X |
| Noise Equivalent Temperature Difference |
NETD≤50mK |
| Minimum Resolvable Temperature Difference |
MRTD≤500mK |
| Wide-angle Visible Light Camera |
| Resolution |
1920×1080 |
| Focal Length |
8mm |
| Field of View Angle |
38°×22° |
| Laser Rangefinder |
| Maximum Ranging Distance |
≥2km (under the condition of visibility ≥15Km) |
| Maximum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤2m |
| Ranging Frequency |
1 Hz |
| Servo Platform |
| Pan Angle |
-110°×+110° |
| Tilt Angle |
-90° ~ +30° (positive upward) |
| Angular Position Accuracy |
≤0.05° |
| Stabilization Accuracy |
≤0.1mrad (1σ1°/2Hz, 2°1Hz) |
| Maximum Angular Velocity |
Azimuth≥90°/s, Pitch≥90°/s |
| Maximum Tracking Angular Velocity |
20°/s |
| System Parameters |
| Image Tracking |
Automatically track selected targets |
| AI Recognition |
Automatically detect and recognize typical targets |
| Rated Working Voltage |
24VDC |
| Voltage |
12V – 32VDC |
| Consumption |
Stable Power Consumption: ≤15W (power-up peak current ≥5A) |
| Weight |
≤800g |
| Dimensions |
≤105mm×91.4mm×148.4mm |
| Interface |
| Control Interface |
RS422/100 Mbit |
| Video Interface |
HD-SDI/Sync 422/100 Mbit/HDMI |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
| Environmental Adaptability |
| Working Temperature |
-40℃～＋60℃ |
| Storage Temperature |
-45℃～＋65℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
