| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
3D Printing, hot stamping |
| Accuracy |
Ultra high level |
| Voltage |
12V – 32VDC |
| Protection Class |
N/A |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

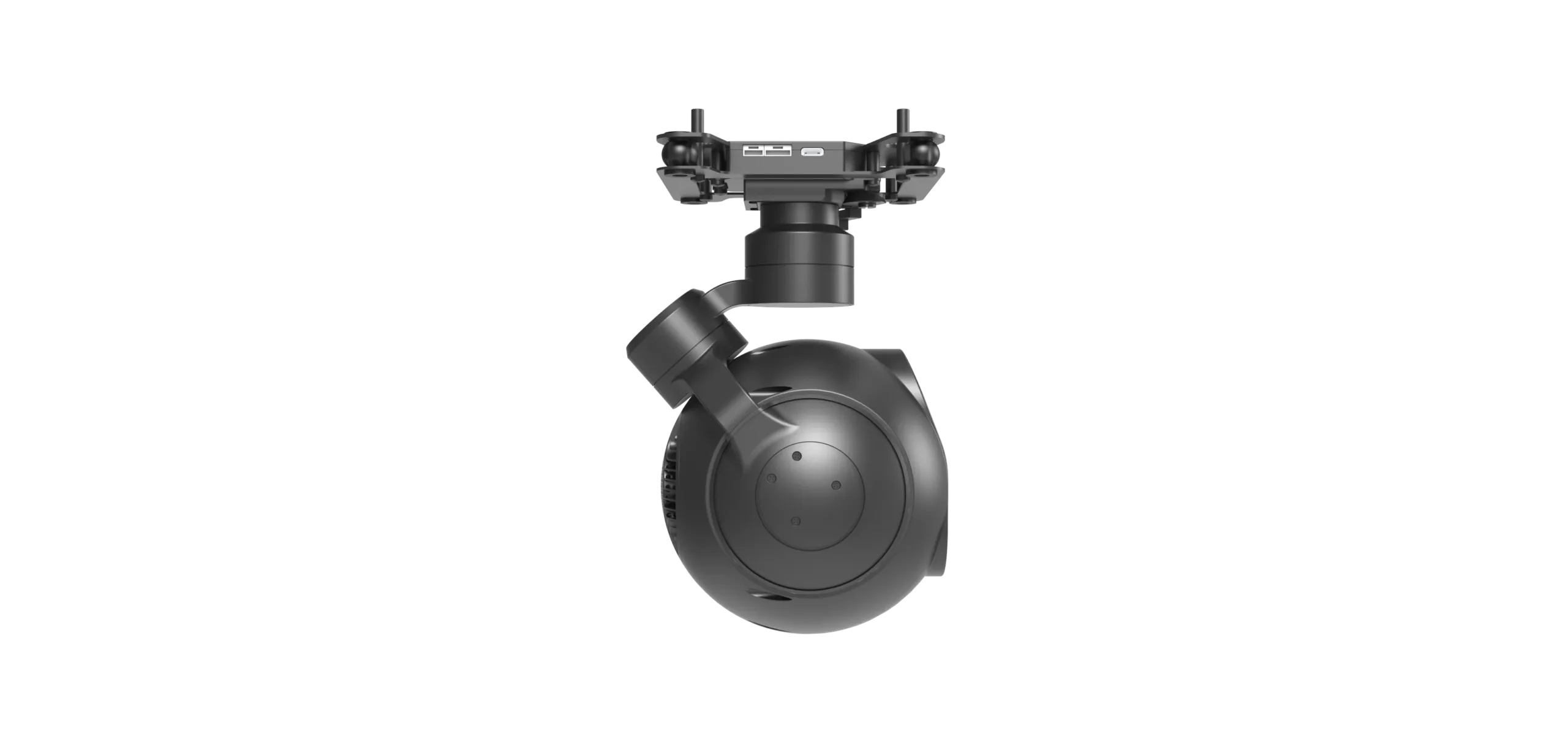

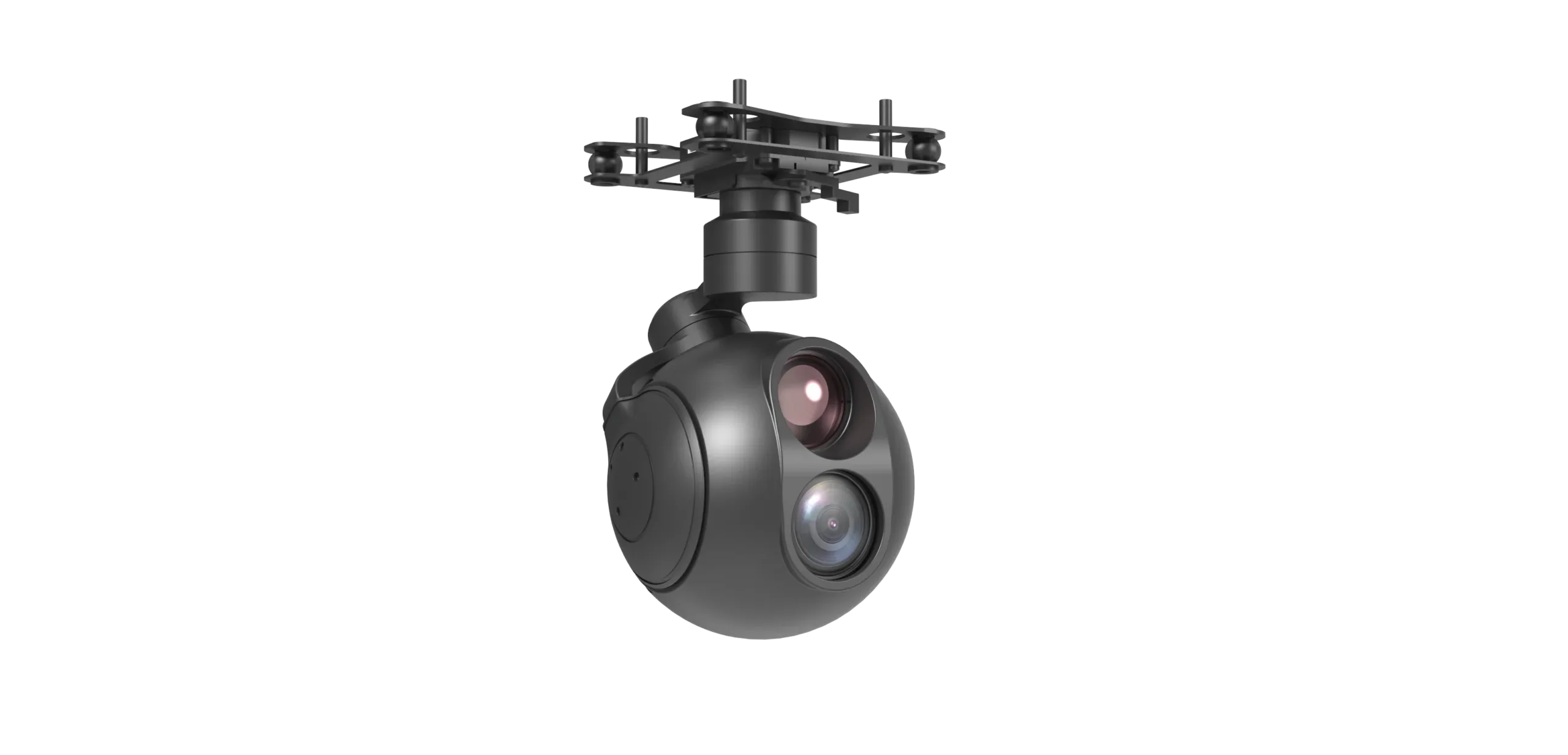

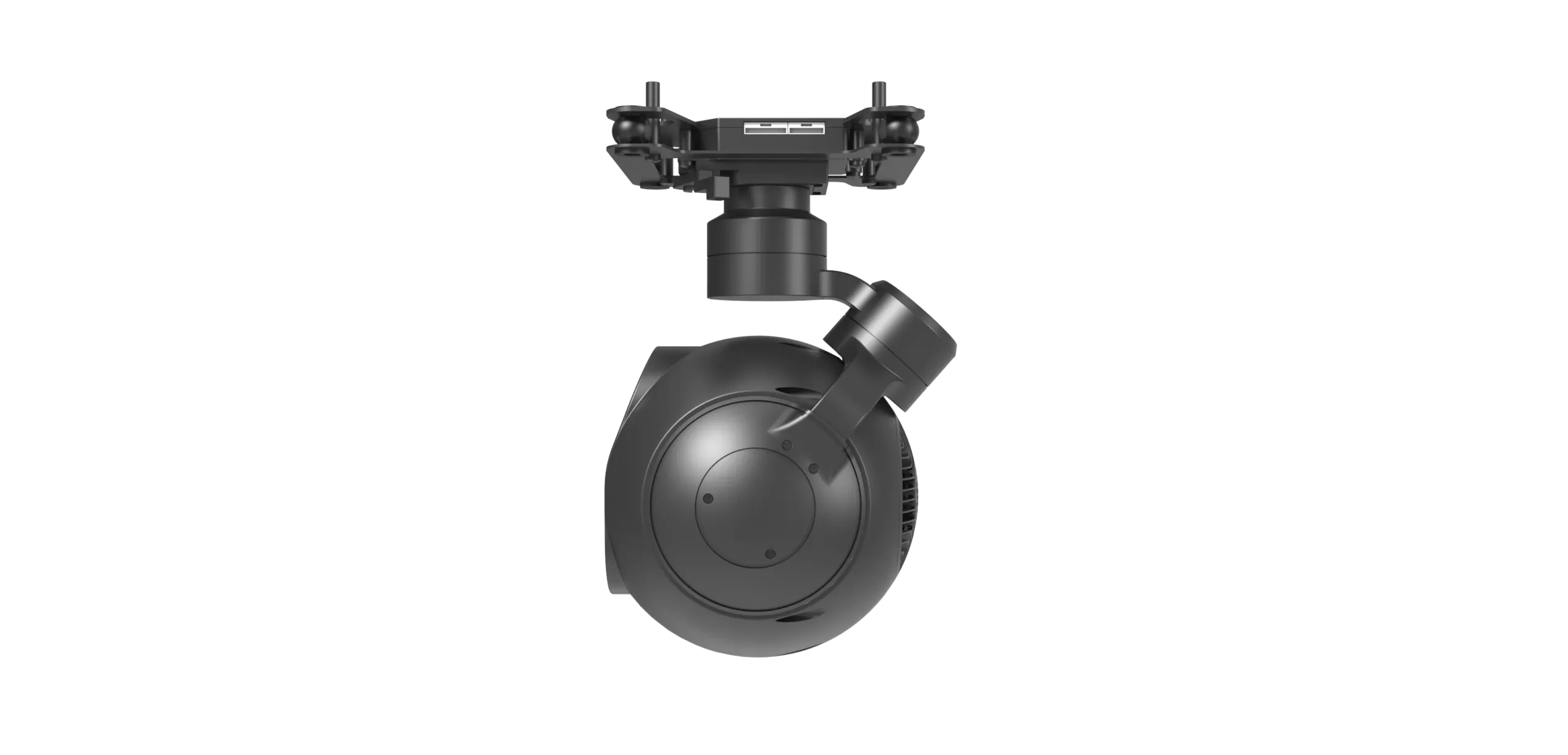

Pod Shendu Camera |
| Standard |
OED,ODM |
| Model Number |
UT120DB |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
640×512 |
| Pixel Size |
12μm |
| Lens Focal Length |
35mm |
| Field of View |
12.5°×10° |
| Pallete |
6 |
| Noise Equivalent Temperature Difference |
NETD≤50mK |
| Minimum Resolvable Temperature Difference |
MRTD≤500mK |
|
|
| Visible Light Camera |
| Resolution |
1920×1080 |
| Optical Zoom |
30 times |
| Focal Length |
4.3mm～129mm |
| Field of View Angle |
63.7°×35.8°～2.3°×1.3°(±5%) |
| Zoom |
Auto focus, manual focus |
| Minimum Illumination |
0.01Lux (black and white) |
|
|
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-110° ~ +45° (positive upward) |
| Roll Angle |
-40°～+40° |
| Frame angle accuracy |
≤0.3°（1σ） |
| Stabilization Accuracy |
≤0.1mrad (1σ) |
| Maximum Rotation Speed |
Azimuth≥50°/s, Pitch≥50°/s |
| Maximum Rotational Acceleration |
Azimuth≥20°/s², Pitch≥20°/s² |
|
|
| Imaging Processing Module |
| Automatically identification |
Automatically identify selected targets≥32 |
| Target tracking |
Target dimension≥16✖16 |
| Tracking frame rates |
50HZ |
| Image output |
RTSP/UDP/RTMP optional, 200kbps～6Mbps settab |
|
|
| System parameters |
| Voltage |
12V – 32VDC |
| Consumption |
Stable Power Consumption: ≤30W, 24VDC power-up peak current ≤5A |
| Weight |
≤1kg |
| dimensions |
≤120mm×130mm×198mm |
|
|
| Interface |
| Control Interface |
RS232/TTL/RS422/ 100 Mbit(optional) |
| Video Interface |
100 megabit Ethernet |
| Storage Interface |
≤128G Memory Card (Mini SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
| Arm Type |
Oblique arm |
| Quick Release Type |
With quick release |
|
|
| Environmental Adaptability |
| Working Temperature |
-20℃ ~ +55℃ (-40℃ optional) |
| Storage Temperature |
-40℃ ~ +60℃ |
| Vibration Condition |
Acceleration of 6g; 5 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
