| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
20V – 32VDC |
| Protection Class |
IP54 |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

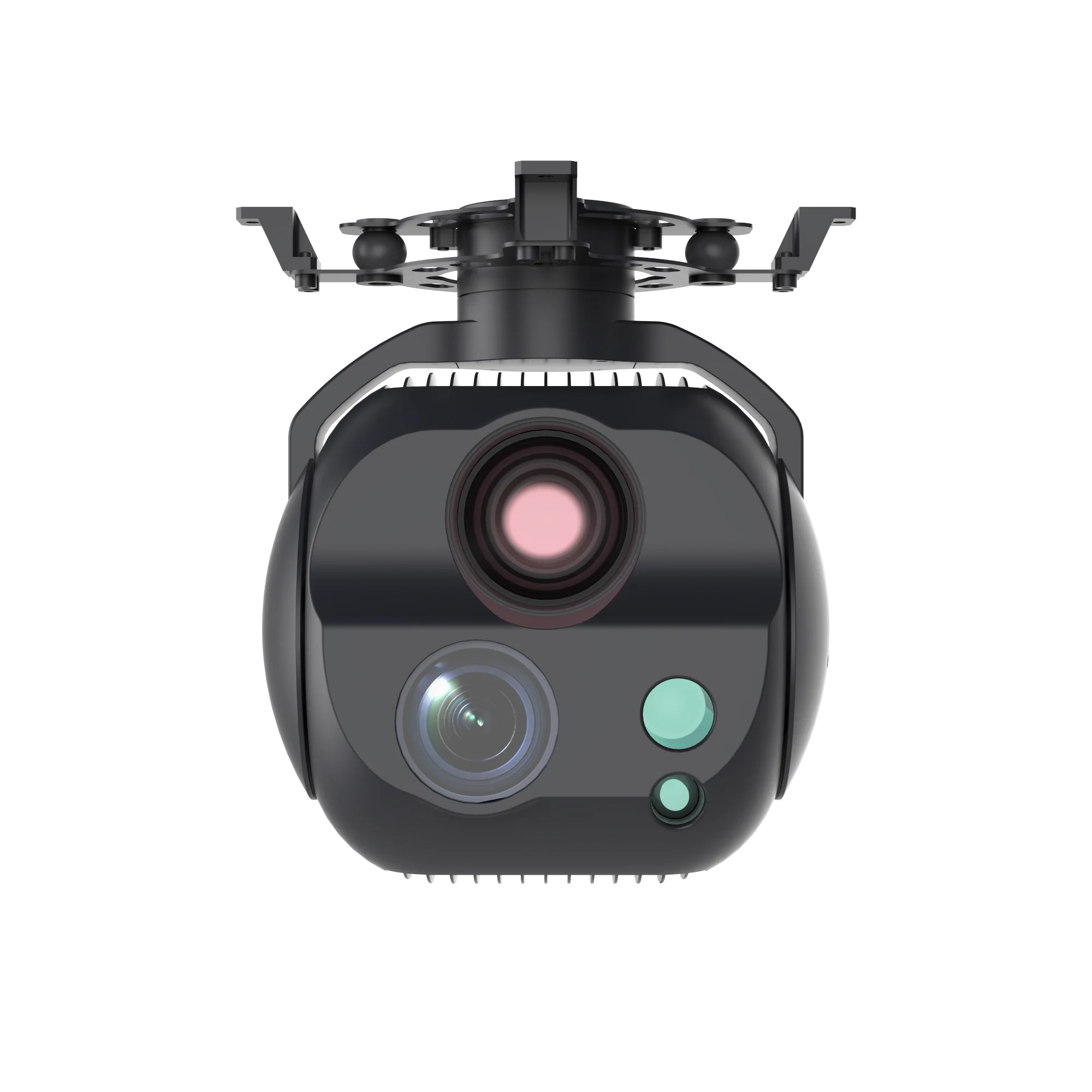

Pod Shendu Camera |
| Application |
Payloading integration |
| Model Number |
UD150T |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
640×512 |
| Pixel Size |
12μm |
| Lens Focal Length |
45mm |
| Field of View |
9.75°×7.81°（±5%） |
| Palette |
6 |
| Electronic zoom |
1～4X |
| Noise Equivalent Temperature Difference |
NETD≤50mK |
| Minimum Resolvable Temperature Difference |
MRTD≤500mK |
| Visible Light Camera |
| Resolution |
1920×1080 |
| Pixel size |
2.8μm |
| Optical Zoom |
30 times |
| Hybrid Zoom |
60 times |
| Focal Length |
4.3mm～129mm |
| Field of View Angle |
63.7°×35.8°～2.3°×1.3° |
| Zoom |
Auto focus, manual focus |
| Minimum Illumination |
0.01Lux(Black and white) |
| Laser Ranging Machine |
| Resolution |
4056×3040 (fixed focus 1200W pixels) |
| Pixel Size |
1.55μm |
| Focal Length |
3.35mm |
| Field of View Angle |
83°×53° |
| Laser Ranging Machine |
| Maximum Ranging Distance |
≥3km (under the condition of visibility ≥15Km) |
| Minimum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤2m |
| Ranging Frequency |
1 ~5 Hz |
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-120° ~ +90° (positive upward) |
| Angular Position Accuracy |
≤0.3°（1σ） |
| Stabilization Accuracy |
≤0.1mrad（1σ） |
| Maximum Angular Velocity |
Azimuth≥50°/s, Pitch≥50°/s |
| Maximum Tracking Angular Velocity |
Azimuth≥20°/s, Pitch≥20°/s |
| Imaging processing Module |
| Automatically identification |
Automatically identify selected targets≥32 |
| Target tracking |
Target dimension≥16✖16 |
| Tracking frame rates |
50HZ |
| Image output |
RTSP/UDP/RTMP optional, 200kbps～6Mbps settable |
|
|
| System parameters |
| Voltage |
20V – 32VDC |
| Consumption |
Stable Power Consumption: ≤30W (power-up peak current ≥5A) |
| Weight |
≤1Kg |
| dimensions |
155mm×157mm×171.4mm |
|
|
| Interface |
| Control Interface |
RS422/TTL |
| Video Interface |
1000 Mbit |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
|
|
| Environmental Adaptability |
| Working Temperature |
-20℃～＋60℃（-40℃ optional） |
| Storage Temperature |
-45℃～＋65℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
