| Product Attribution | |
|---|---|
| Type | cooled FPA |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | 20v-32DVC |
| Protection Class | IP54 |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

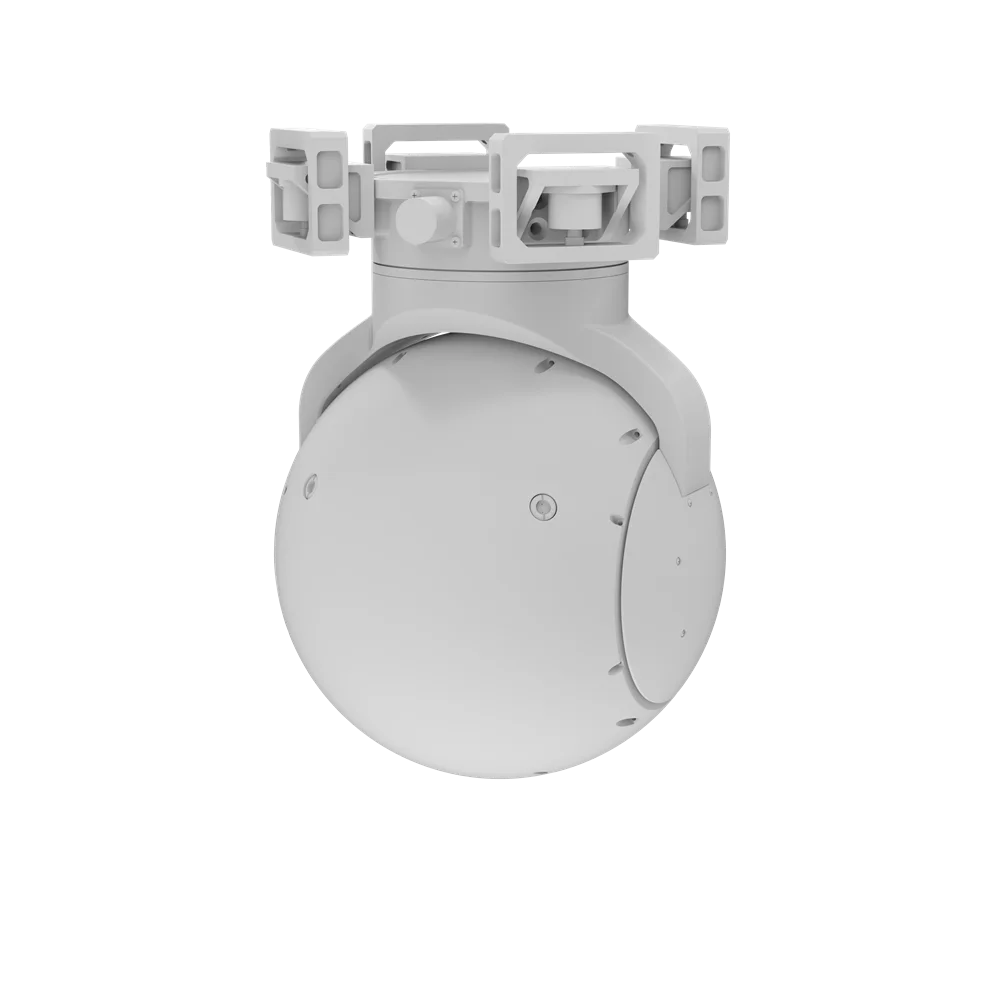

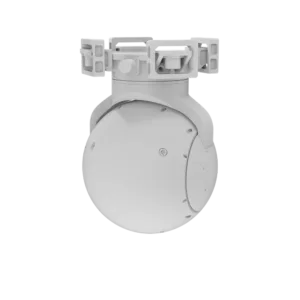

| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number | PD280TA |
| Packaging & Delivery | Single item |
| Infrared Thermal Imager | |
| Model | UD260TC |
| Detector Type | cooled FPA |
| Wave length | 3μm～5μm |
| Detector Resolution | 640×512 |
| Pixel Size | 15μm |
| Lens Focal Length | 18mm～275mm continuous focusing |
| Field of View | 29.9º×24.1º～2º×1.6º |
| Noise Equivalent Temperature Difference | NETD≤20mK |
| Minimum Resolvable Temperature Difference | MRTD≤180mK |
| Visible Light Camera | |
| Resolution | 1920×1080 |
| Wave length | 0.4μm～0.9μm |
| Pixel Size | 2.8μm |
| Optical magnification | 30x |
| Hybrid Zoom | 60x |
| Focal Length | 4.3mm～129mm |
| Field of View Angle | 63.7°×35.8°～2.3°×1.3°(±5%) |
| Focusing way | Auto、manual |
| Low Lumin | 0.01Lux（black & white） |
| Laser Range Finder | |
| Wave Length | 1535nm |
| Max. distance | ≥6km（ visibility≥15Km） |
| Min. distance | ≤20m |
| Accuracy | ≤2m |
| Frame rates | 1～5Hz |
| – | – |
| Servo Platform | |
| Pan Angle | 360°×n（360°continuous rotary） |
| Tilt Angle | -120°～+20°（upward is positive） |
| Accuracy angular | ≤0.06°（1σ） |
| Accuracy stability | ≤0.05mrad（1σ） |
| Maximum turning speed | pan≥60°/s，tilt≥60°/s |
| Maximum turning acceleration | Pan≥100°/s²，tilt≥100°/s² |
| – | – |
| Image processing | |
| Auto Identification | Auto identify human、vehicle, the number of the targets≥32 |
| Target tracking | Target size≥16×16 |
| Tracking Frame rates | 50Hz |
| Image output | RTSP/UDP/RTMP optional，bit 200kbps～6Mbps configurable |
| System parameters | |
| Supplying Voltage | 20V～32VDC |
| Consumption | stable：≤100W；max：≤200W |
| Weight | ≤10Kg |
| Cube | ≤260mm×260mm×372mm |
| – | – |
| Interface | |
| Control | RS422 |
| Video | HD-SDI/Mb network（H.264） |
| Storage | ≤128G storage（Micro SD card） |
| Image format | jpg |
| Video format | avi |
| – | – |
| Environment | |
| Work temperature | -40℃～＋60℃ |
| Storage temperature | -45℃～＋65℃ |
| Vibration | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Shocking | Peak acceleration 20g, duration 11ms |
| IP | Light raining proof |
