| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
12V – 32VDC |
| Protection Class |
IP54 |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

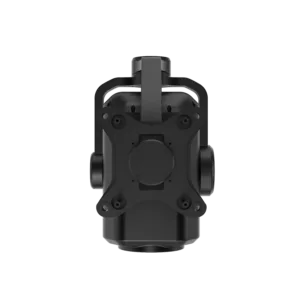

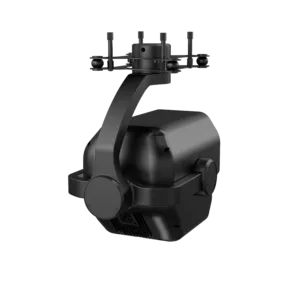

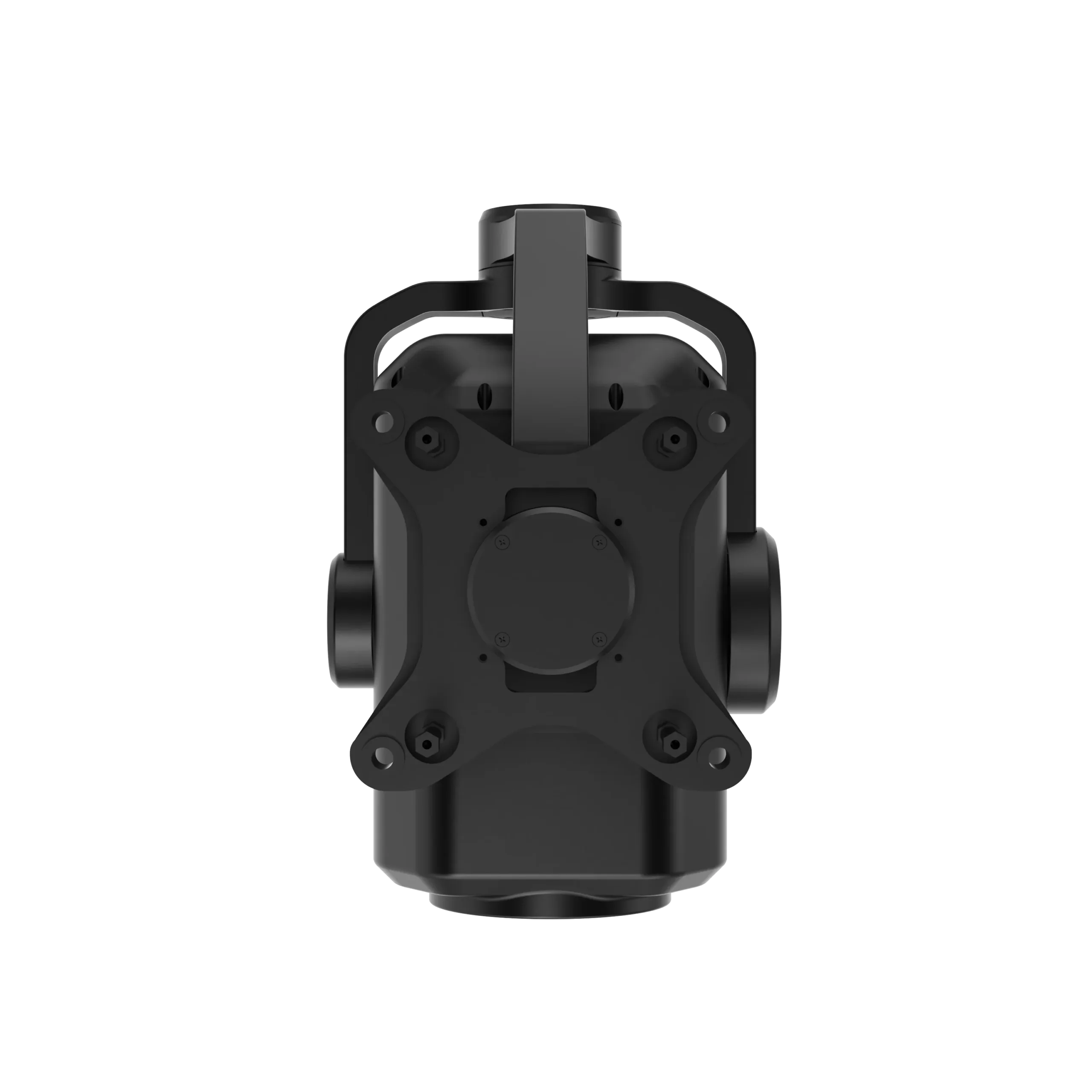

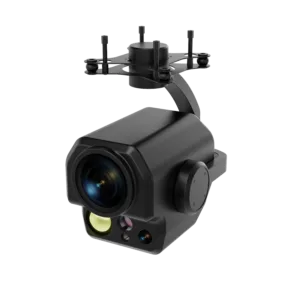

Pod Shendu Camera |
| Application |
Payloading integration |
| Model Number |
PT083Q |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
1280×1024 |
| Pixel Size |
12μm |
| Lens Focal Length |
35mm |
| Field of View |
24.8°×19.9°（±5%） |
| Noise Equivalent Temperature Difference |
NETD≤50mK |
| Minimum Resolvable Temperature Difference |
MRTD≤500mK |
| Zoom Visible Light Camera |
| Resolution |
3840×2160 |
| Pixel size |
2.0μm |
| Optical Zoom |
50 times |
| Focal Length |
6mm～300mm |
| Field of View Angle |
65.2×39.6°～1.4×0.8° |
| Zoom |
Auto focus, manual focus |
| Minimum Illumination |
0.01Lux |
|
|
| Wide-angle Visible Light Camera |
| Resolution |
4056×3040 (fixed focus 1200W pixels) |
| Pixel Size |
1.55μm |
| Focal Length |
3.35mm |
| Field of View Angle |
83°×53° |
| Laser Ranging Machine |
| Maximum Ranging Distance |
≥3km (under the condition of visibility ≥5Km, car target:3m×6m) |
| Minimum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤2m |
| Ranging Frequency |
1 ~5 Hz |
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-110° ~ +45° (positive upward) |
| Roll Angle |
-45°+45° |
| Stabilization Accuracy |
≤0.01mrad（1σ） |
| Maximum Angular Velocity |
Azimuth≥60°/s, Pitch≥60°/s |
| Maximum Tracking Angular Velocity |
Azimuth≥50°/s, Pitch≥50°/s |
|
|
| System parameters |
| Image Tracking |
Automatically track selected targets |
| AI Recognition |
Automatically detect and recognize typical tar |
| Rated Working Voltage |
24VDC |
| Voltage |
12V – 32VDC |
| Consumption |
Stable Power Consumption: ≤40W (24VDCpower-up peak current≤5A) |
| Weight |
≤1.9Kg |
| dimensions |
≤146.4mm×224.8mm×225.1mm |
|
|
| Interface |
| Control Interface |
RS232/TTL/RS422/100 Mbit(optional) |
| Video Interface |
100 Mbit |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
| Arm Type |
Straight Arm |
| Environmental Adaptability |
| Working Temperature |
-20℃～＋55℃(-40℃ optional) |
| Storage Temperature |
-40℃～＋60℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
