| Product Attribution | |
|---|---|
| Type | Uncooled Focal Plane Detector |
| Customized Support | OEM, ODM |
| Place of Origin | Hubei, China |
| Power | other |
| Logo/graphic design | 3D Printing, hot stamping |
| Accuracy | Ultra high level |
| Voltage | 20v-32DVC |
| Protection Class | IP54 |
| Warranty | 1 Year |
| Brand Name | Shendu |
| Application | security survillence |

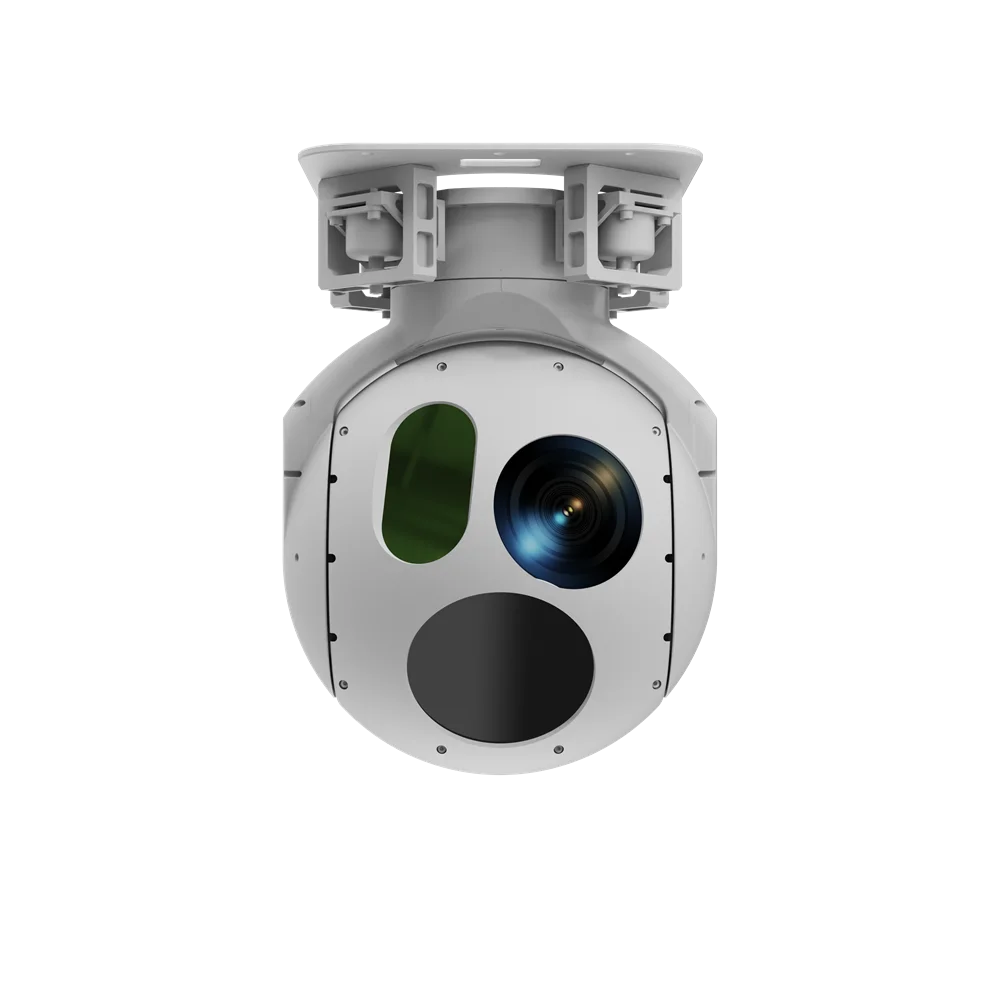

| Product Name | Pod Shendu Camera |
| Standard | OED,ODM |
| Model Number | PD290T |
| Packaging & Delivery | Single item |
| Infrared Thermal Imager | |
| Model | PD290T |
| Detector Type | Uncooled Focal Plane Detector |
| Working Waveband | 8μm～14μm |
| Detector Resolution | 640×512 |
| Pixel Size | 12μm |
| Lens Focal Length | 20～120mm |
| Field of View | 28.7°×23.2°～5.9°×4.7° |
| Palette | 6 |
| Noise Equivalent Temperature Difference | NETD≤50mK |
| Minimum Resolvable Temperature Difference | MRTD≤500mK |
| – | – |
| Visible Light Camera | |
| Resolution | 1920×1080 |
| Pixel Size | 2.8μm |
| Optical Zoom | 30 times |
| Hybrid Zoom | 60 times |
| Focal Length | 10mm～150mm |
| Field of View Angle | 39.6°×22.9°～2.8°×1.6° |
| Zoom | Auto focus, manual focus |
| Minimum Illumination | 0.01Lux（black white） |
| – | – |
| Laser Ranging Machine | |
| Maximum Ranging Distance | ≥6km (under the condition of visibility ≥15K |
| Capable | 80mJ |
| Servo Platform | |
| Pan Angle | 360°×n (360° continuous rotation) |
| Tilt Angle | -20° ~ +90° (positive upward) |
| Frame Angular Accuracy | ≤0.1°（1σ） |
| Stabilization Accuracy | ≤0.05mrad(1σ) |
| Maximum Turning Speed | azimuth≥60°/s，pitch≥60°/s |
| Maximum Turning Acceleration | azimuth≥100°/s²，pitch≥100°/s² |
| – | – |
| System parameters | |
| Image Tracking | Automatically track selected targets |
| AI Recognition | Auto checking, identify typical target |
| Rated Working Voltage | 24VDC |
| Voltage | 20V – 32VDC |
| Consumption | Stable Power Consumption: ≤60W |
| Weight | ≤16.5Kg |
| Dimensions | ≤290mm×290mm×401mm |
| – | – |
| Interface | |
| Control Interface | RS422/Mbps network |
| Video Interface | Mbps network |
| Storage Interface | ≤128G Memory Card (Mini SD Card) |
| Picture Format | jpg Format |
| Video Format | avi Format |
| Environmental Adaptability | |
| Working Temperature | -40℃～＋50℃ |
| Storage Temperature | -40℃～＋55℃ |
| Vibration Condition | Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition | Peak acceleration of 20g, duration of 11ms |
| Protection Level | Can fly in light rain |
