| Type |
Uncooled Focal Plane Detector |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
3D Printing, hot stamping |
| Accuracy |
Ultra high level |
| Voltage |
20v-32DVC |
| Protection Class |
IP54 |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |

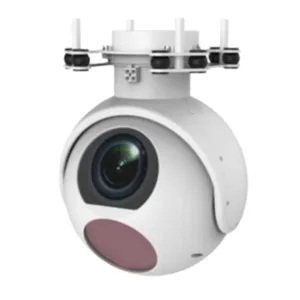

Pod Shendu Camera |
| Standard |
OED,ODM |
| Model Number |
UD140D |
| Packaging & Delivery |
Single item |
| Infrared Thermal Imager |
| Model |
UD230TB |
| Detector Type |
Uncooled Focal Plane Detector |
| Working Waveband |
8μm～14μm |
| Detector Resolution |
640×512 |
| Pixel Size |
12μm |
| Lens Focal Length |
65mm |
| Field of View |
6.8°×5.4°（≤5%） |
| Palette |
6 |
| Electronic zoom |
1～4X |
| Noise Equivalent Temperature Difference |
NETD≤40mK |
| Minimum Resolvable Temperature Difference |
MRTD≤500mK |
|
|
| Visible Light Camera |
| Resolution |
1920×1080 |
| Pixel size |
2.8μm |
| Optical Zoom |
30 times
|
| Hybrid Zoom |
60 times |
| Focal Length |
4.3mm～129mm |
| Field of View Angle |
63.7°×35.8°～2.3°×1.3° |
| Zoom |
Auto focus, manual focus |
| Minimum Illumination |
0.01Lux |
|
|
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-120° ~ +90° (positive upward) |
| Angular Position Accuracy |
≤0.2°（1σ） |
| Stabilization Accuracy |
≤0.05mrad（1σ） |
| Maximum Angular Velocity |
Azimuth≥60°/s, Pitch≥60°/s |
| Maximum Angular Acceleration |
Azimuth≥50°/s, Pitch≥50°/s |
|
|
| System parameters |
| Image Tracking |
Automatically track selected targets |
| AI Recognition |
Automatically detect and recognize typical |
| Rated Working Voltage |
24VDC |
| Voltage |
12V – 32VDC |
| Consumption |
Stable Power Consumption: ≤30W (24VDCpower-up peak current ≤5A) |
| Weight |
≤1.3Kg |
| Dimensions |
140mm×152mm×188mm |
|
|
| Interface |
| Control Interface |
RS422/100 Mbit |
| Video Interface |
100 Mbit (HD-SDI optional) |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
|
|
| Environmental Adaptability |
| Working Temperature |
-20℃～＋55℃（-40℃ optional） |
| Storage Temperature |
-40℃～＋60℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
|
|
|
|
|
|
