| Type |

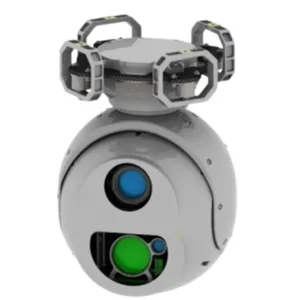

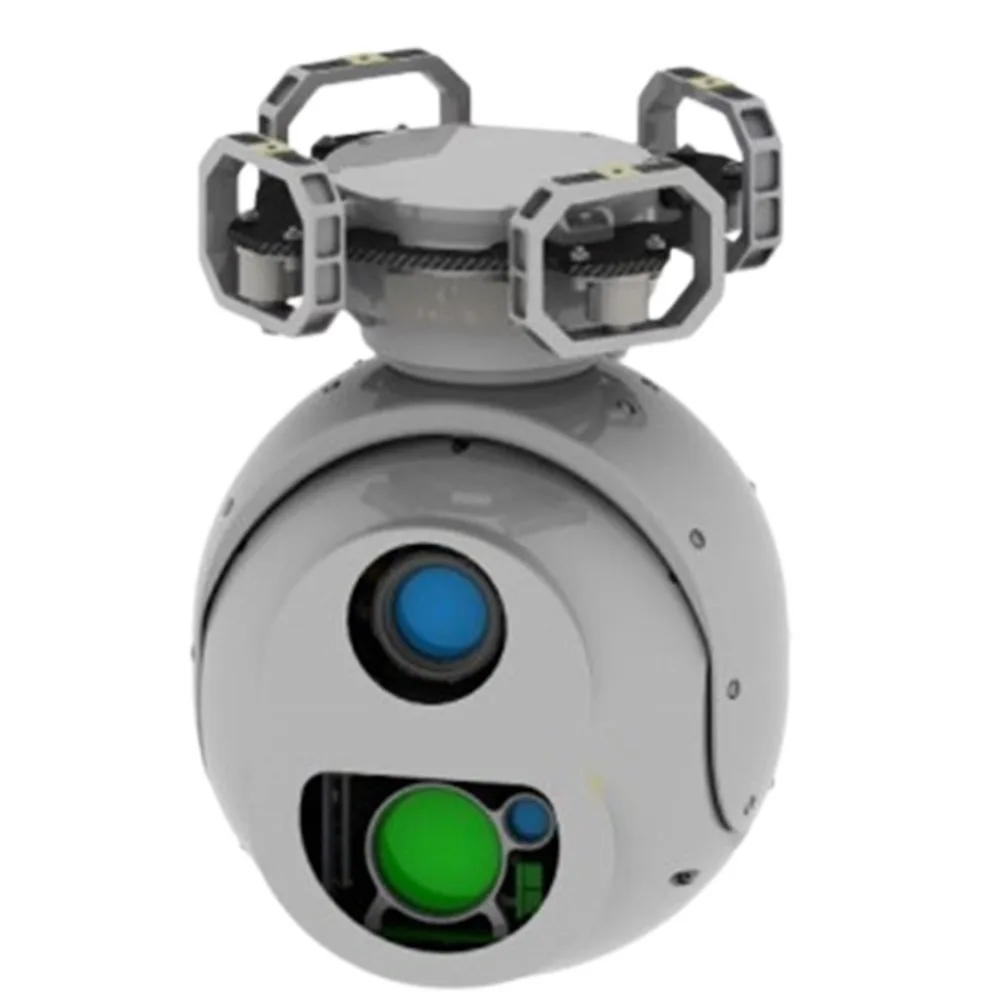

Two-axis Gimbal Camera |
| Customized Support |
OEM, ODM |
| Place of Origin |
Hubei, China |
| Power |
other |
| Logo/graphic design |
hot stamping, 3D Printing |
| Accuracy |
Ultra high level |
| Voltage |
20v-32DVC |
| Protection Class |
IP54 |
| Warranty |
1 Year |
| Brand Name |
Shendu |
| Application |
security survillence |
| Product Name |
Pod Shendu Camera |
| Application |
Payloading integration |
| Model Number |
PD185D |
| Packaging & Delivery |
Single item |
| Visible Light Camera |
| Resolution |
1920×1080 |
| Pixel size |
4μm |
| Optical Zoom |
20 times |
| Hybrid Zoom |
40 times |
| Focal Length |
10mm～200mm |
| Field of View Angle |
42°×24.4°～2.2°×1.2° |
| Optical Axis Consistency |
≤2 pixels |
| Zoom |
Auto focus, manual focus |
| Minimum Illumination |
0.01Lux |
|
|
| Laser Rangefinder |
| Maximum Ranging Distance |
≥8km (under the condition of visibility ≥15Km) |
| Minimum Ranging Distance |
≤20m |
| Ranging Accuracy |
≤2m |
| Ranging Frequency |
1 ~5 Hz |
| Servo Platform |
| Pan Angle |
360°×n (360° continuous rotation) |
| Tilt Angle |
-110° ~ +10° (positive upward) |
| Angular Position Accuracy |
≤1mrad |
| Stabilization Accuracy |
≤20urad(1σ,1°/2Hz、2°/1Hz sinusoidal oscillation |
| Tracking Accuracy |
≤0.2mrad(1σ) |
| Maximum Tracking Angular Velocity |
≥10°/s |
| Memory Tracking Time |
≥3s |
| Maximum Angular Velocity |
Azimuth≥60°/s, Pitch≥60°/s |
| Maximum Tracking Angular Velocity |
Azimuth≥10°/s, Pitch≥10°/s |
|
|
| System parameters |
| Image Tracking |
Automatically track selected targets |
| AI Recognition |
Automatically detect and recognize typical targe |
| Target Positioning Accuracy |
≤20m（2km distance） |
| Rated Working Voltage |
24VDC |
| Voltage |
20V – 32VDC |
| Consumption |
Stable Power Consumption: ≤60W (without loa |
| Weight |
≤2.5Kg (without load) |
| dimensions |
≤185mm×170.5mm×273.5mm |
|
|
| Interface |
| Control Interface |
RS422 |
| Video Interface |
100 Mbit |
| Storage Interface |
≤128G Memory Card (Micro SD Card) |
| Picture Format |
jpg Format |
| Video Format |
avi Format |
|
|
| Environmental Adaptability |
| Working Temperature |
-40℃～＋65℃ |
| Storage Temperature |
-50℃～＋70℃ |
| Vibration Condition |
Acceleration of 2g; 30 minutes in each of the vertical, lateral and longitudinal directions. |
| Impact Condition |
Peak acceleration of 20g, duration of 11ms |
| Protection Level |
Can fly in light rain |
|
|
